10-channel light effects generator

Generator with ten 12V/400 mA outputs, able to drive lamps, standard and solid-state relays, LEDs and so on

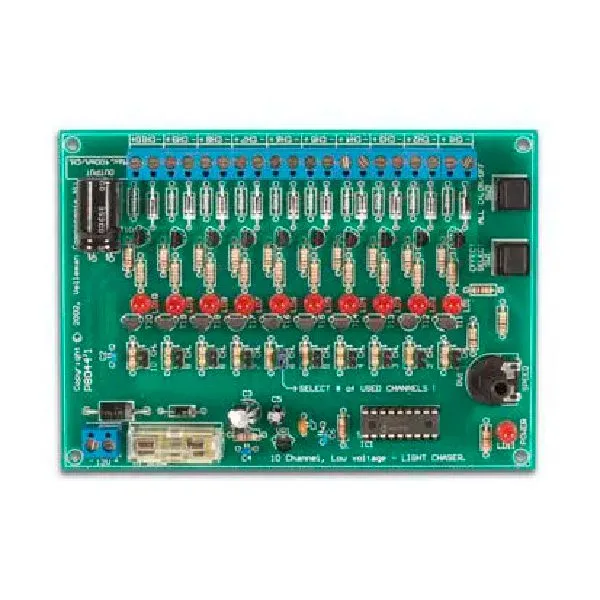

10-channel light effects generator - Image 1

SKU 8220-VM120EAN 5410329330903Item type: Assembled

Description

Ten-output 12V/400 mA generator capable of controlling lamps, standard and solid-state relays, LEDs, etc. It can generate numerous light effects for creating illuminated signs, disco systems, and more generally attention-grabbing lighting systems. It features ten pre-programmed sequences selectable via a button. Supplied assembled and tested.

Features

  • Maximum activation time for a single output: 1 second
  • Memory: non-volatile, retaining the last sequence used

Technical details

Number of channels 10 (a lower number of outputs can also be used)
Pre-programmed sequences 10
Execution speed adjustable
Output indicator 1 LED per channel
Power supply 12 Vdc
Outputs 12 Vdc / 400 mA per channel (total 4A max)
Dimensions 140 x 100 x 27 mm
Recommended power supply PSS1255 (12V/5.5A)
