144 LED NEOPIXEL strip, 1 metre long – IP67
SKU 2846-1MNEO144EAN 8219671107488Item type: AssembledLED strips
Description

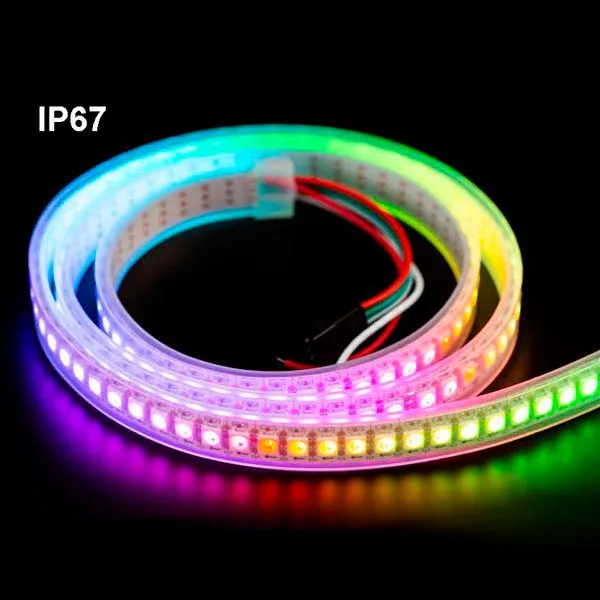

Addressable light strip containing 144 high-brightness RGB LEDs, flexible and weather-resistant (IP67). Each individual LED (SMD5050) integrates the control chip (SK6812). Each chip communicates with the next one via a single line, transferring the received information. These “smart” strips are therefore very well suited for creating borders and outlines that light up and change color on command; they can also be placed side by side to create matrices that can be controlled pixel by pixel and capable of raster displays, as seen on some facades of department stores and hi-tech buildings. Distance between LEDs 7 mm, can be cut at every LED, power supply: 5 VDC, length: 1 meter.
Warning! the power supply is not included.
Technical specifications
- – red 620-630 nm
– green 515-525 nm
– blue 460-470
The strip has the following joint at 50 cm, the distance between the two LEDs is slightly greater than all the others.
Technical details
| Color | RGB |
|---|---|
| Control chip | SK6812 |
| Number of 5050 RGB LEDs | 144 |
| Distance between LEDs | 7 mm |
| Viewing angle | 120° |
| Protection rating | IP67 |
| Average lifespan | 50,000 hours |
| Power supply | 5 VDC |
| Power consumption | 43.2 watts |
| Current draw | 8.5 A |
| Operating temperature | from -20°C to +50°C |
| Dimensions | 1 m (length) x 15 mm (width) x 4 mm (thickness) |
| Weight | 55 g |
