18650 Li-ion Battery – 2000mAh with Solder Tabs

High-capacity rechargeable lithium-ion (Li-ion) 18650 battery, 2000mAh

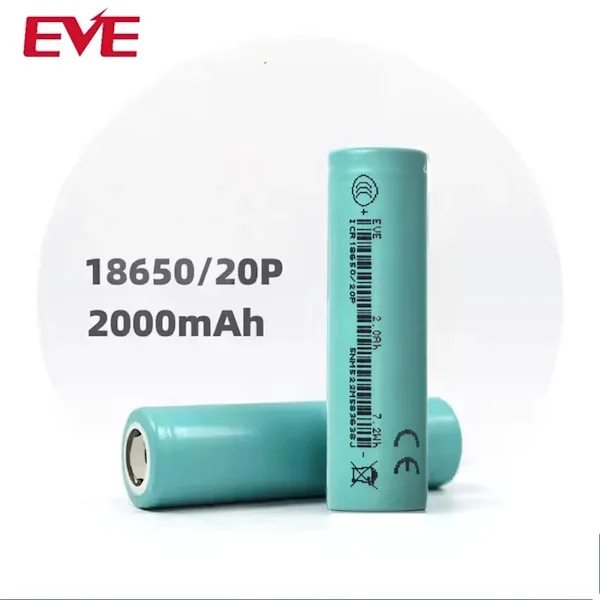

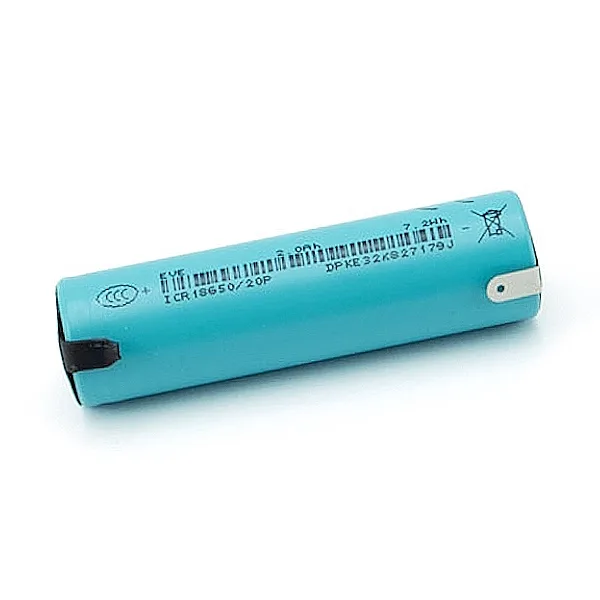

18650 Li-ion Battery - 2000mAh with Solder Tabs - Image 1
18650 Li-ion Battery - 2000mAh with Solder Tabs - Image 3
18650 Li-ion Battery - 2000mAh with Solder Tabs - Image 4
18650 Li-ion Battery - 2000mAh with Solder Tabs - Image 5

SKU 7893-ICR18650TAGEAN 8595563723272Format: 18650, CylindricalOutput voltage: 3.6 Vdc

Description

This rechargeable 18650 format Li-ion battery delivers high performance thanks to lithium-ion technology. With a rated capacity of 2000 mAh and a continuous discharge capability of 30A, it gives long running time and cuts down on frequent recharging. The solder tabs make it easy to build into electronic circuits, which makes this battery the ideal choice for DIY projects, LED torches, portable devices and much more. Designed to work over a wide temperature range from -20 °C to +45 °C, this battery offers reliability and long life even under demanding conditions.

Technical details

Manufacturer EVE Energy Co., Ltd
Nominal voltage 3.6 V
Working voltage 2.5-4.2V
Type rechargeable lithium-ion
Format 18650
Connections solder tabs
Dimensions (mm) Ø18x65
Rated capacity 2000 mAh
Maximum discharge current 30A - 15C
Charging current up to 4A
Weight approx. 48 g
Operating temperature -20 ° C to +45 ° C
