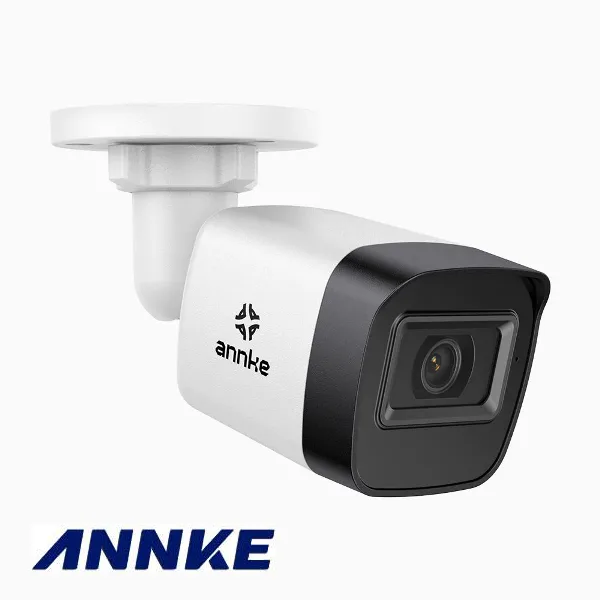

4-in-1 Bullet Camera, 2 Mpx

Night Vision and Adaptability: Fitted with an automatic IR-Cut filter and a single Smart EXIR infrared LED, it ensures clear night vision up to 30 metres (100 ft). DWDR (Digital Wide Dynamic Range) and 2D DNR technology ensures balanced images with minimal noise, in any lighting condition.

Maximum Flexibility (4-in-1): Forget compatibility issues. The device uses a single port for four switchable signal types (TVI/AHD/CVI/CVBS) via a convenient button at the head of the cable, making it compatible with most analog HD DVRs on the market.

Tough and Durable: Its IP67 protection rating makes it fully dust-protected and waterproof, allowing it to be installed in any weather condition.

N.B. the power supply is not included (see related products).

• Image Sensor. 2MP CMOS Image Sensor
• Power Supply: DC 12 V
• Operating Temperature: From –40°C to 60°C
• Dimensions (L x W x H): 138.8 x 60.9 x 57.9 mm
• Weight: 145 g
• Material: Plastic

• I connected the device to the monitor, but I don’t see any signal.
  The monitor accepts a CVBS signal, so since the camera is 4-in-1, it must be set to the correct, compatible signal. Press and hold the button for about 4 seconds while the camera is powered; this will cycle the signal through the 4 available options, so repeat the procedure until you see the video signal.

• I connected the device to the DVR, but I don’t see any signal.
  If the DVR is a 4-in-1 type, it must support the camera’s resolution, so make sure this is the case. Also, the DVR might not accept all 4 signal types, so press and hold the button for about 4 seconds while the camera is powered; this will cycle the signal through the 4 available options, so repeat the procedure until you see the video signal.
