5-Way Electrical Terminal Block with Spring Levers

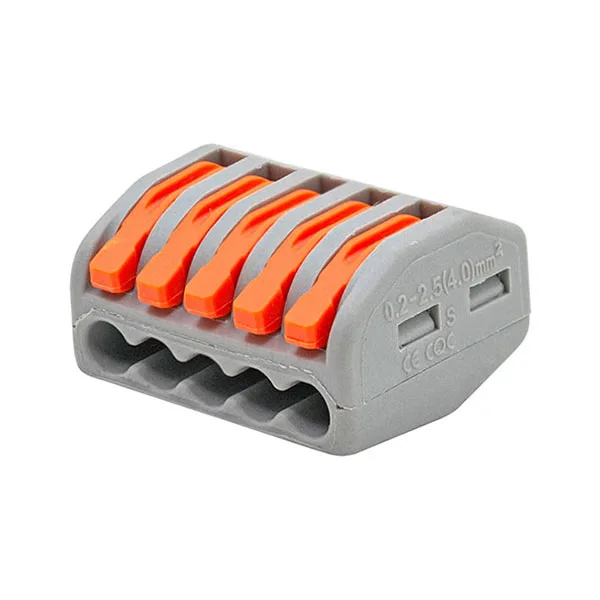

5-way terminal block with spring levers and a built-in wire strip gauge on the underside.
SKU 1606-MORS5PLEVAEAN 8219671091350Item type: AssembledElectrical accessories, Terminal blocks
Description

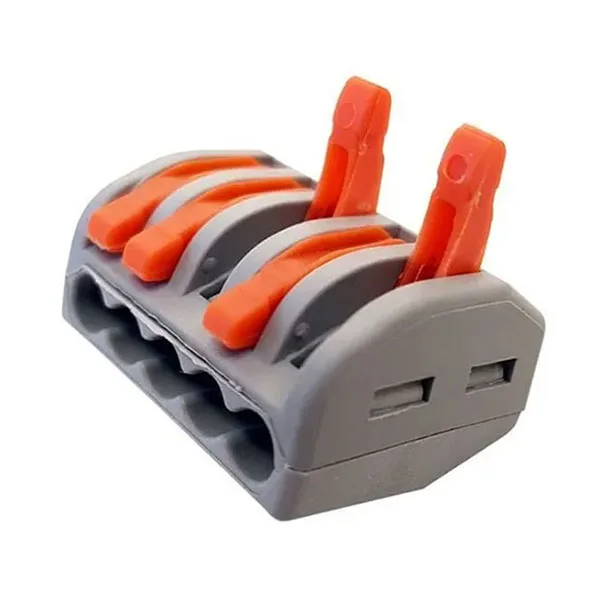

| With this 5-way terminal block fitted with spring levers, you can make stable, reliable electrical connections in a few simple steps: just strip 9-10 mm of the wire, lift the orange lever, insert the wire and lower it. This terminal block is suitable for wires with a cross-section from 0.2 to 2.5 mm², supporting a voltage of up to 250 V and a rated current of 32 A.
The terminal block’s internal track connects the 5 terminals in series, ensuring a continuous, secure connection between the various conductors. This design is especially useful for applications that require sequential wiring. Designed to simplify the job, it’s the ideal solution for domestic and professional wiring. With its intuitive design and no need for complex tools or soldering, it offers a fast, long-lasting connection.
|
| Technical specifications |
|
Technical details
| Number of ways | 5 |
|---|---|
| Connection type | spring lever for quick connection |
| Supported wire cross-section | 0.2 – 2.5 mm² |
| Rated voltage | 250 V |
| Rated current | 32 A |
| Body material | durable plastic |
