6 mm LENS WITH IR LEDs

The IR LEDs switch on automatically below a set light threshold

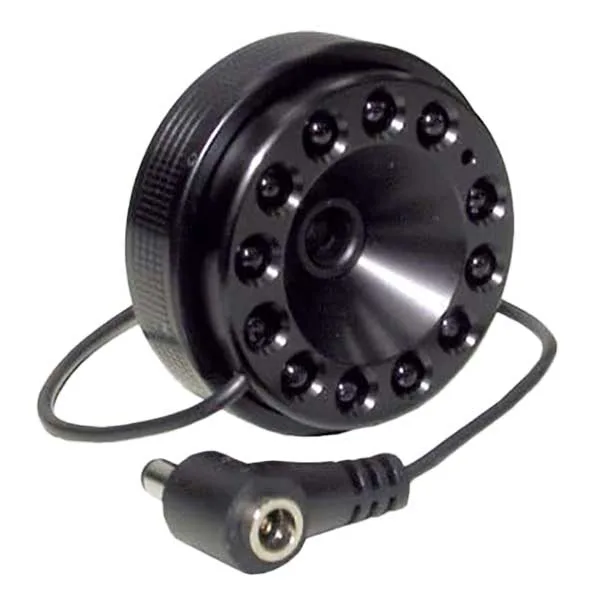

6 mm LENS WITH IR LEDs - Image 1

SKU 8220-CAML11IREAN 8219671031561Item type: Assembled

Description

The IR LEDs switch on automatically below a set light threshold. Compatible with 1/3″ and 1/4″ sensors, both colour and black and white. The lens draws its supply voltage from the camera’s 12 Vdc plug. Suitable for cameras with a CS mount.
MOUNTING ON THE CAMERA AND POWER SUPPLY
SPECIFICATIONS
  • Compatible with 1/3″ and 1/4″ sensors
  • camera)
  • voltage, mains adapter not included)

Technical details

Lens f 6.0 / F2.0 mm
Mount CS
Focus adjustment from 40 cm to infinity
Angle of view 53° (1/3") - 40° (1/4")
IR switch-on threshold < 10Lux
Effective range 10 m (B/W camera), 15 m (colour
Power supply 12 Vdc ± 10% / 160 mA (regulated
Dimensions Ø58.6 x 24 mm
Weight 90 g
