8-Digit Display Module with MAX7219

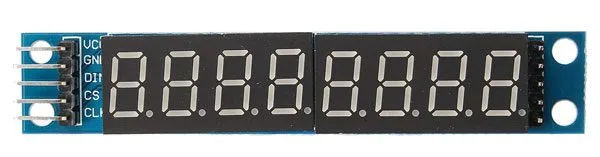

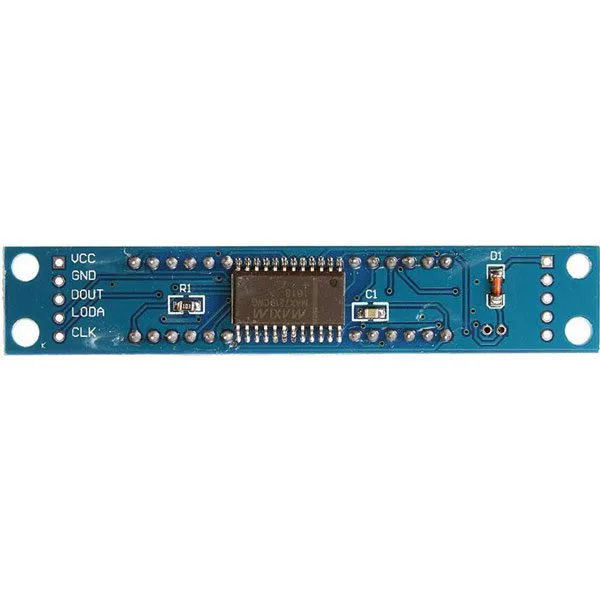

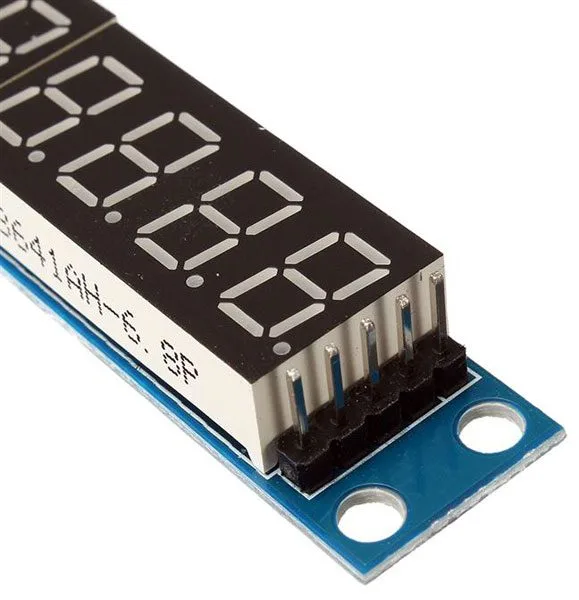

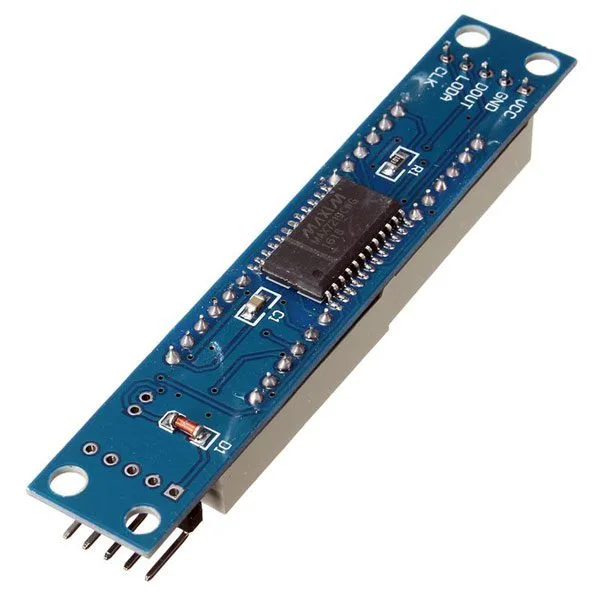

Module with 8 red 7-segment LED displays, driven by the MAX7219 IC
8-Digit Display Module with MAX7219 - Image 1
8-Digit Display Module with MAX7219 - Image 3
8-Digit Display Module with MAX7219 - Image 4
8-Digit Display Module with MAX7219 - Image 5

SKU 8300-YB307EAN 8219671100038Item type: Assembled

Description

Module with 8 red 7-segment LED displays, driven by the MAX7219 IC. It can be controlled via Arduino or another microcontroller, and multiple modules can be daisy-chained. Power supply: 5 VDC

Documentation and useful links

Technical details

Power supply 5 VDC
PCB dimensions (mm) 83x16x15
Display dimensions (mm) 61x14.2x7
Digit height (mm) 10
