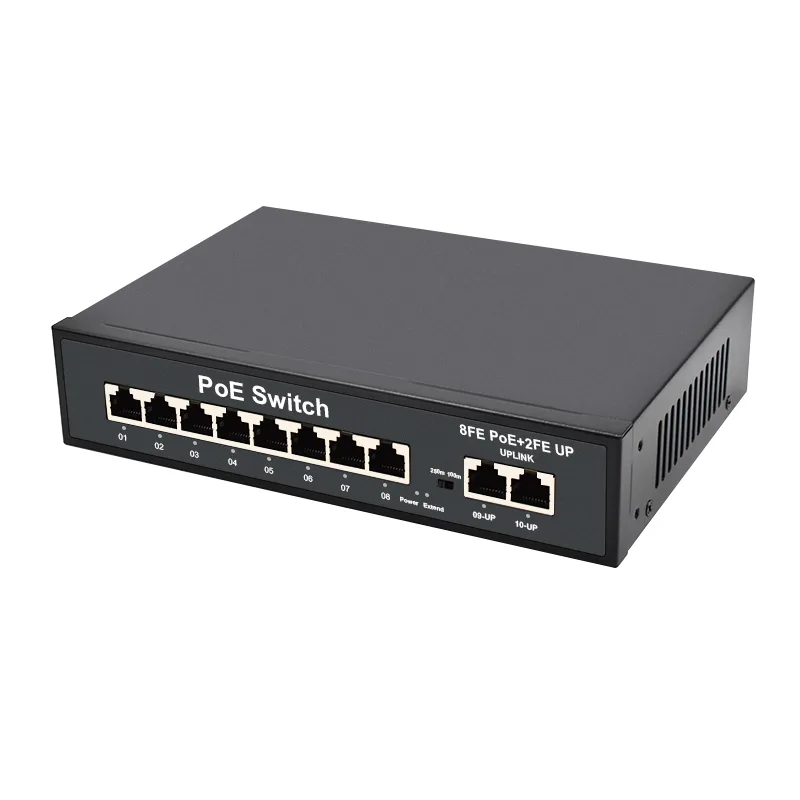

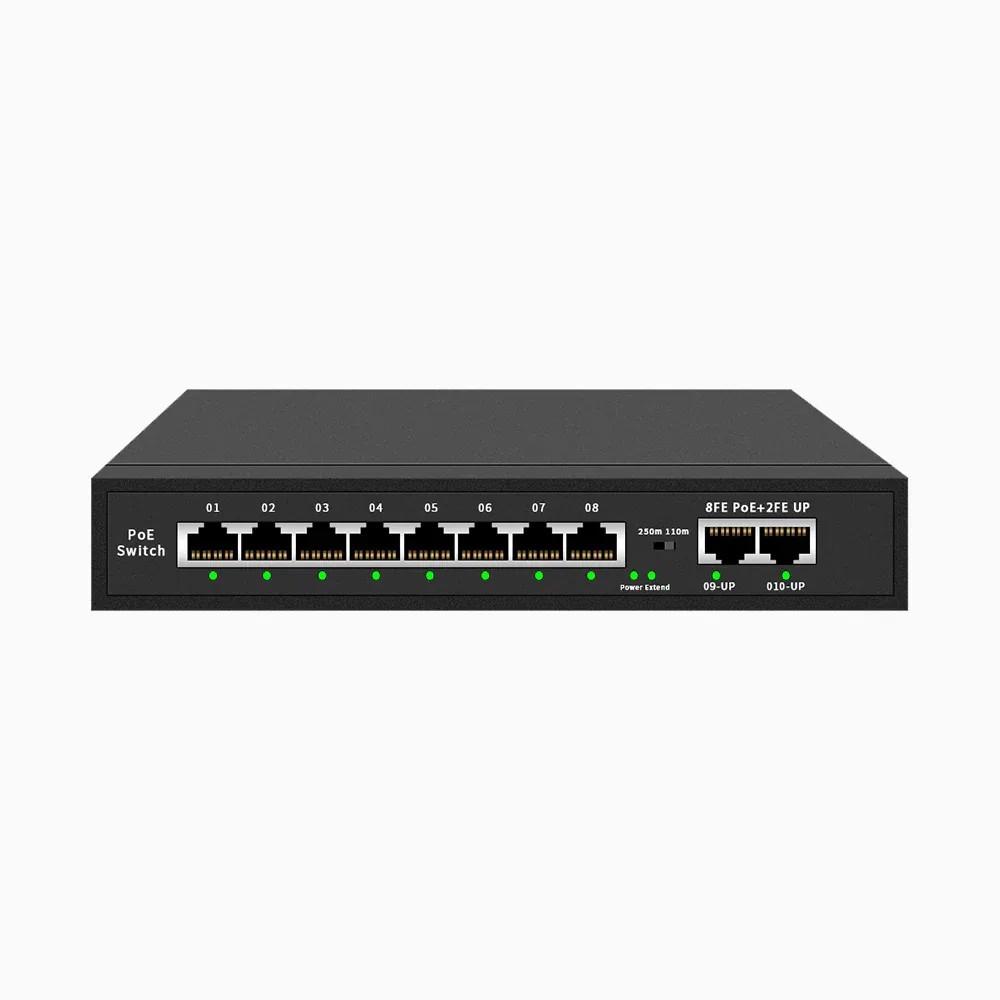

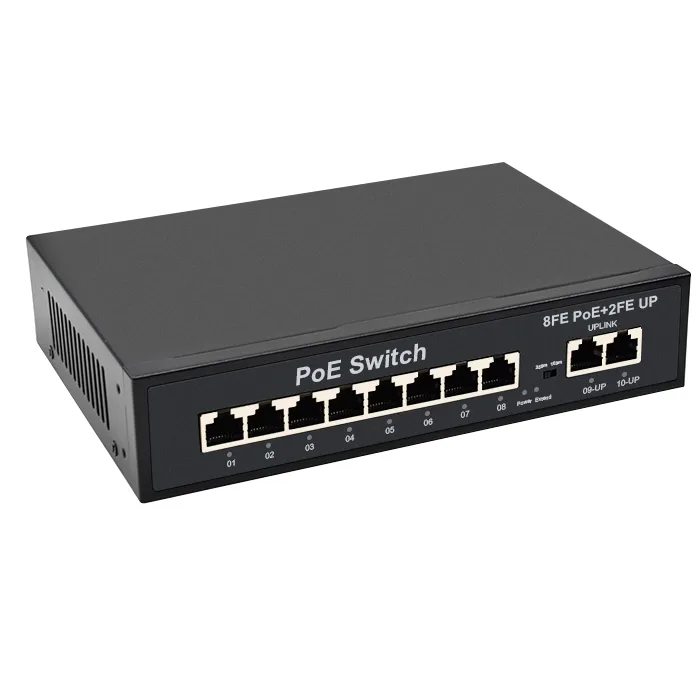

8-Port 10/100Mbps PoE Ethernet Switch

8-port PoE Ethernet switch with a total power budget of 120W (up to 25.4W per port), ideal for connecting and powering IP cameras, access points and other network devices. Rugged metal housing, quiet fans and a versatile design for desktop or wall installation.
8-Port 10/100Mbps PoE Ethernet Switch - Image 1
8-Port 10/100Mbps PoE Ethernet Switch - Image 3
8-Port 10/100Mbps PoE Ethernet Switch - Image 4
8-Port 10/100Mbps PoE Ethernet Switch - Image 5
8-Port 10/100Mbps PoE Ethernet Switch - Image 6

SKU 7940-POESW104EAN 8219671121293Features: Air vent, PoEConnection type: Ethernet cable

Description

Optimise your network with this 8-port PoE Ethernet switch, designed to connect and power all your PoE-compatible devices simply and efficiently.
With a maximum power of 25.4W per port and support for the IEEE802.3 af/at power standards, it delivers stable, fast data transmission, perfect for surveillance cameras, access points and other network devices.

Extremely easy to use thanks to Plug & Play: just connect the power cable and the Ethernet cables and you’re ready to go, with no extra software needed. The rugged metal design and industrial fans ensure optimal heat dissipation and quiet, reliable operation even in demanding environments.

It offers several installation options – desktop, wall-mounted – to best suit your needs. With a built-in power supply, it’s a practical, clutter-free solution for your network.

Perfect for professional and home applications, this PoE switch combines power, efficiency and simplicity in a single device.
Technical specifications
  • Number of Ports: 8 PoE ports (10/100 Mbps RJ45) + 2 uplink ports for connection to router and NVR
  • 100Base-TX Operating Standard: All ports can communicate with each other and transmit up to 100 m
  • 10Base-T Operating Standard: The 8 PoE ports can transmit up to 250 m
  • Power Supply: Built-in power supply, no external adapters needed
  • Plug & Play: No software configuration required
  • Cooling: Industrial fans for heat dissipation and noise reduction
  • Compatibility: Compatible with IP cameras, WiFi access points, VoIP phones and other PoE devices
  • Applications: Ideal for professional and home use
  • Mounting: Fittings provided for wall mounting or tabletop use

Technical details

Maximum PoE Power 120W total (up to 25.4W per PoE port)
Network Standards IEEE 802.3, IEEE802.3u, 802.3x, 802.3w
Power Standards IEEE 802.3af, IEEE 802.3at
Transfer Speed 8 x 10/100 Mbps
Uplink Port 2 × 10/100 Mbps
Cache 768kb
Jumbo Frame 2048b
Switching Capacity 2 Gbps
Transfer Mode Adaptive full duplex/half duplex
Status LEDs LINK/ACT.100Mbps - PoE Status - Power
Material Metal housing
Installation Desktop, wall-mount or rack-mount
Weight 0.7 kg
Dimensions 201x140x44mm
