A/V Twisted-Pair Transmission System

Sends both an audio and a video signal over distance through UTP cable

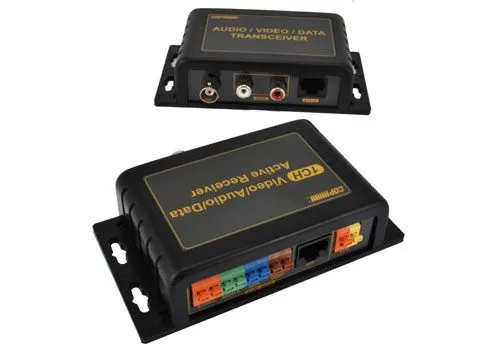

A/V Twisted-Pair Transmission System - Image 1
A/V Twisted-Pair Transmission System - Image 3

SKU 8100-FR430EAN 8219671026659Item type: Assembled

Description

It allows sending (via UTP cable) both audio and video signals over a distance. Maximum range of 1200 meters with color and black/white video signal. It has a filter that prevents interference from external disturbances. Possibility to integrate sensors (PIR, magnetic, etc.) and data (Pan, Tilt, and Zoom control for cameras).

Technical details

Video input 1 Vpp 75 Ohm (BNC connector)
Audio input RCA connector
Data input 2-pole terminal block
Output port RJ45 and terminal block
Recommended cable CAT-5 UTP 4 pairs (24 AWG)
Dimensions (mm) 120x65x30
Video output 1 Vpp 75 Ohm (BNC connector)
Audio output RCA connector
Data output 2-pole terminal block
Input power 12 Vdc/30 mA (no load)
Input port RJ45 and terminal block
