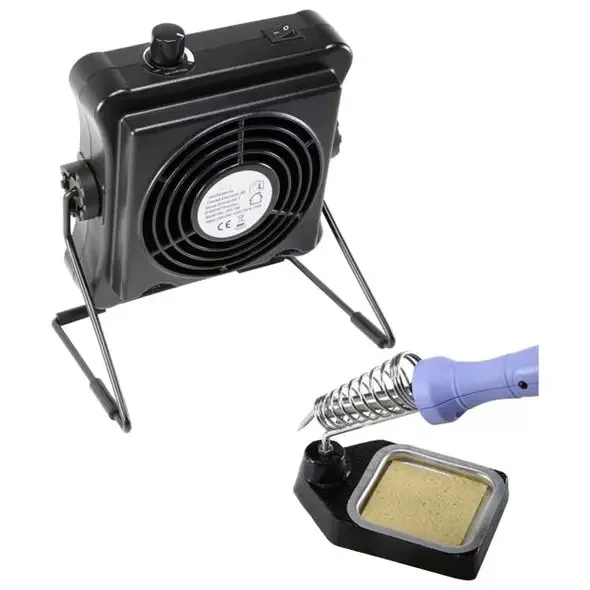

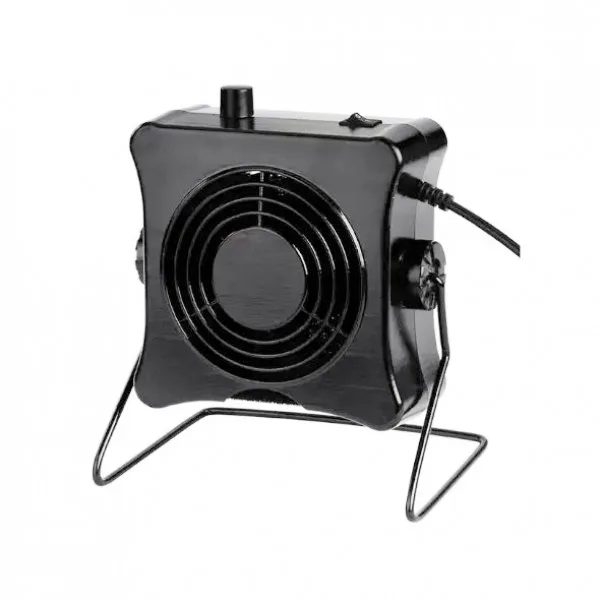

Adjustable Fan / Solder Fume Extractor

Solder fume extractor with activated carbon filter
Adjustable Fan / Solder Fume Extractor - Image 1
Adjustable Fan / Solder Fume Extractor - Image 3
Adjustable Fan / Solder Fume Extractor - Image 4
Adjustable Fan / Solder Fume Extractor - Image 5

SKU 8240-TP0065FANEAN 8595563725498

Description

Soldering fume extractor with activated carbon filter. Equipped with speed adjustment, it can also be used as a desk fan. Removes harmful soldering fumes, various resins, and pyrography fumes from the workstation. It can extract fumes in a vertical position even when hung. The activated carbon filter can be easily replaced (see related products).

Technical details

Supply voltage 220 - 240 VAC / 50 Hz
Air flow rate (adjustable) from 0.2 to 1.2 m³ / min
Noise emission (max.) 45 dB (A)
Activated carbon filter 130x130x10 mm
Body material antistatic plastic
Dimensions (mm) 217x135x185
Maximum power 23 W
Weight 1042 grams
