Aneng AC11 Socket Tester

This smart tester is designed to detect the polarity of the 220 VAC outlet and the efficiency of the residual current circuit breaker (RCD)

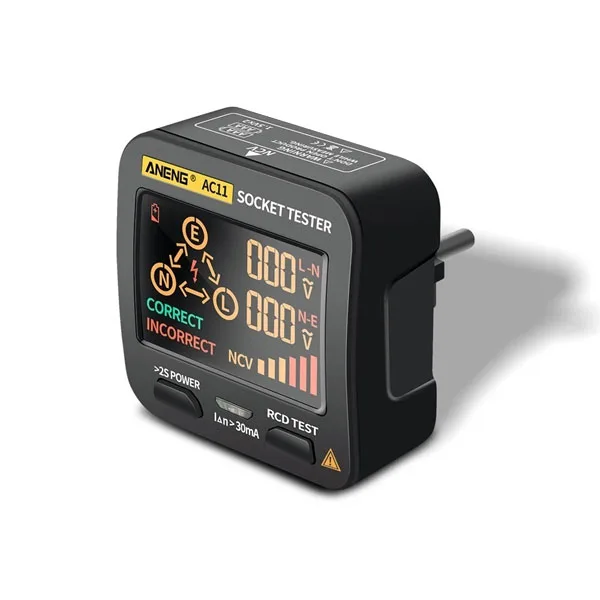

Aneng AC11 Socket Tester - Image 1

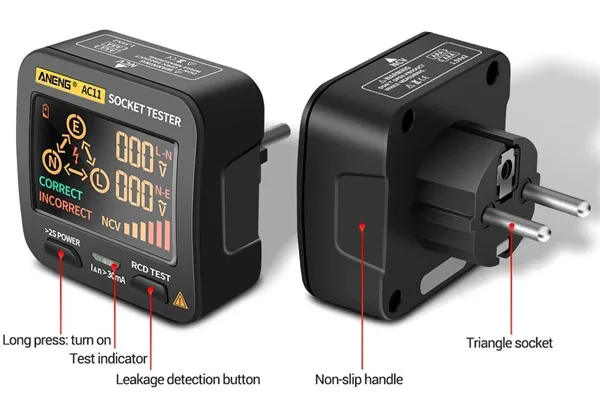

Aneng AC11 Socket Tester - Image 3

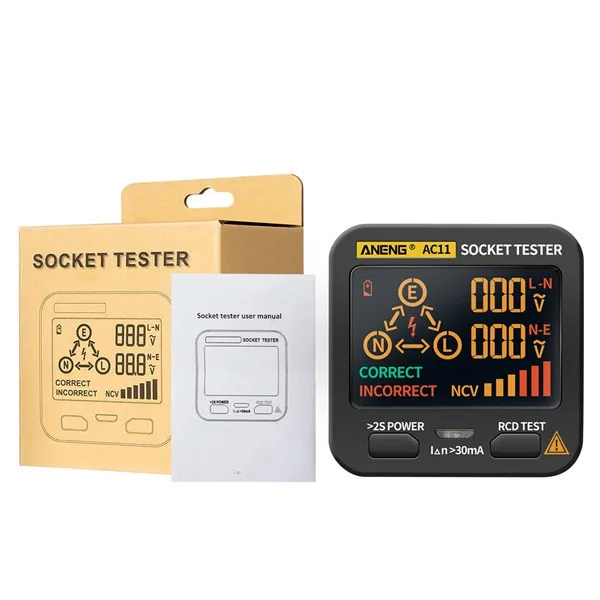

Aneng AC11 Socket Tester - Image 4

SKU 1606-HR3330EAN 8219671119689Brand: AnengProduct type: Multimeters & electrical testers, Power & energy analysis

Description

This smart tester is designed to detect the polarity of 220 VAC power outlets and the efficiency of the residual-current circuit breaker. It can quickly and accurately identify ground, neutral, live, leakage, voltage, and outlet wiring, and simultaneously display the results on the LED display. Widely used for electrical maintenance testing, office outlets, power strips, wall outlets, laboratories, factories, etc.

Instructions in Italian

Technical specifications

Technical details

Housing material ABS
Color Black
Plug Schuko
Power supply 2 AAA 1.5V batteries (not included, see related products)
Test voltage range 0.1V to 250 V / 40 to 1 kHz
Operating temperature 0°C to +40°C
Operating humidity 20%~75%RH
Storage temperature -10°C to +50°C
Storage humidity 20%~80%RH
RCD current > 30 mA
RCD working voltage 220 V ±20V
Dimensions (mm) 65.3x64.5x64.5
Weight 100 grams
