Audio Spectrum Level Kit with LM3915

Audio level indicator (VU meter) with an LM3915 and a light scale of 10 LEDs, with the option of setting the indicator to "dot" or "bar" mode

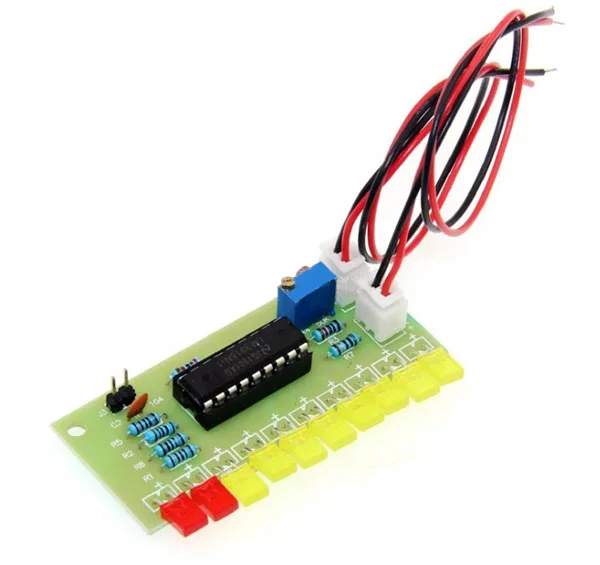

Audio Spectrum Level Kit with LM3915 - Image 1

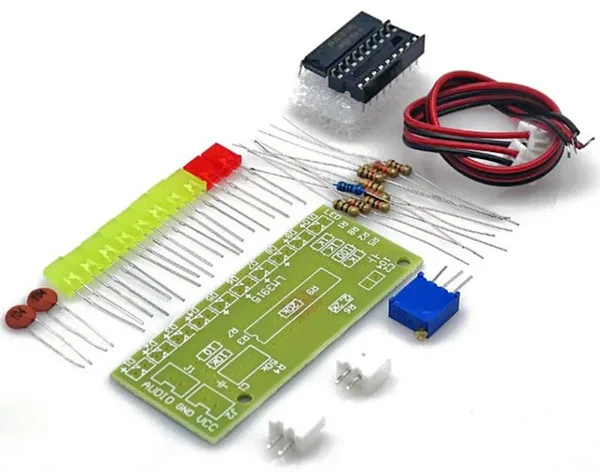

Audio Spectrum Level Kit with LM3915 - Image 3

SKU 1606-SPECTRUMLEVELEAN 8219671119702Item type: Kit,

Description

Audio level indicator (VU meter) with LM3915 and a light scale made up of 10 LEDs, with the ability to select the indicator’s operating mode as “dot” or “bar”. Power supply: 9 to 12 VDC, PCB dimensions (mm): 62x27x1.6.

Instructions in Italian
