Box of 145 SMD electrolytic capacitors – assorted values

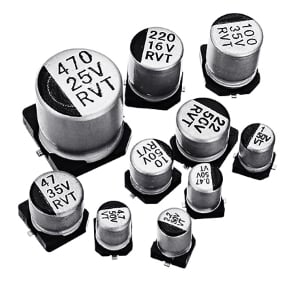

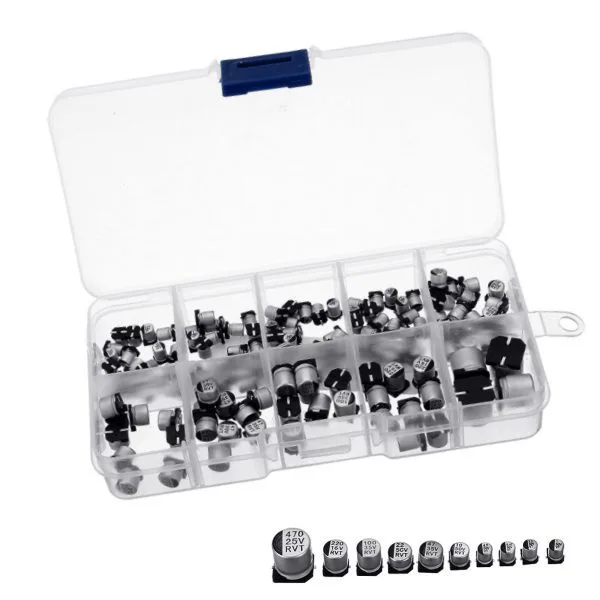

Plastic compartment storage box holding 145 surface-mount electrolytic capacitors in 10 different capacitance values, from 047µF to 470µF.
Box of 145 SMD electrolytic capacitors - assorted values - Image 1

SKU 1606-HA2137EAN 8219671114202Item type: Assembled

Description

Contents
​
Capacitance Voltage Size DxL(mm) Quantity
0.47uF 50V 4 x 5.4 20
1uF 50V 4 x 5.4 20
2.2uF 50V 4 x 5.4 20
4.7uF 50V 4 x 5.4 20
10uF 50V 4 x 5.4 20
22uF 50V 6.3 x 5.4 10
47uF 35V 6.3 x 5.4 10
100uF 35V 6.3 x 7.7 10
220uF 16V 6.3 x 7.7 10
470uF 25V 10 x 10.2 5


Technical details

Capacitance Tolerance electrolytic +/-20%
Operating temperature range -25 to +85
Dissipation factor (120Hz 20) ≤20%
