Breakout Board with Female Type-C Connector

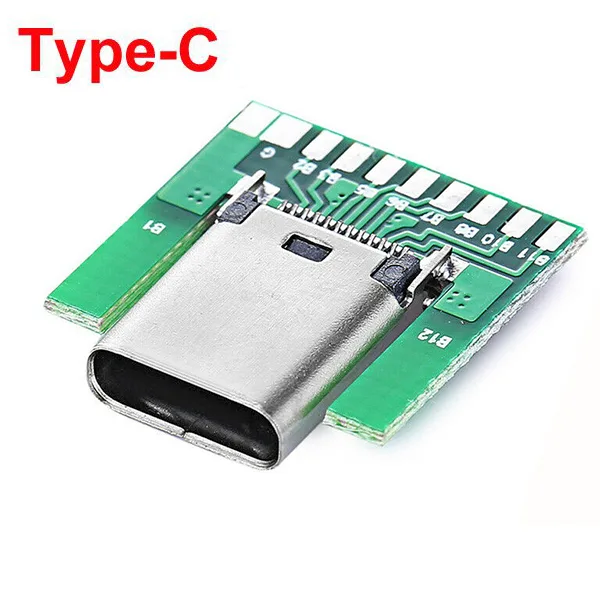

Breakout Board with Female Type-C Connector - Image 1

SKU 8300-TYPECBOARD3FEAN 8219671113632Item type: Assembled

Description

SMT (Surface Mount Technology) female TYPE-C connector, ideal for replacing damaged charging ports or upgrading components and/or projects requiring a USB 3.1 Type-C connection. The advantage of a TYPE-C connector is that the orientation in which it is inserted doesn’t matter, since, being Type “C”, the cable’s insertion direction is irrelevant, unlike other USB connectors that require a specific connection direction.

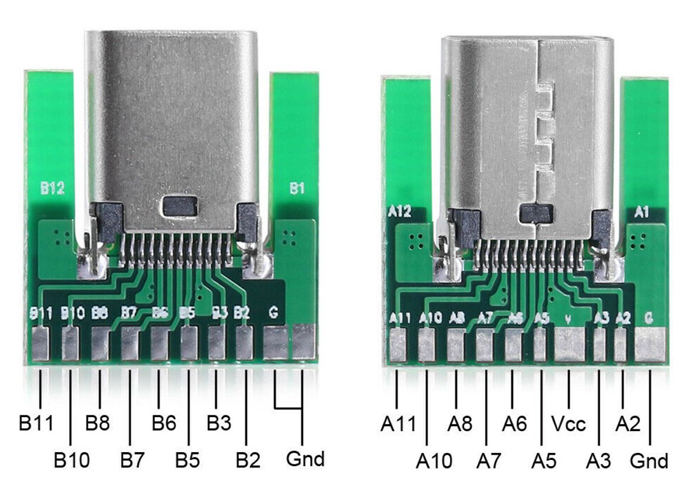

Pinout
