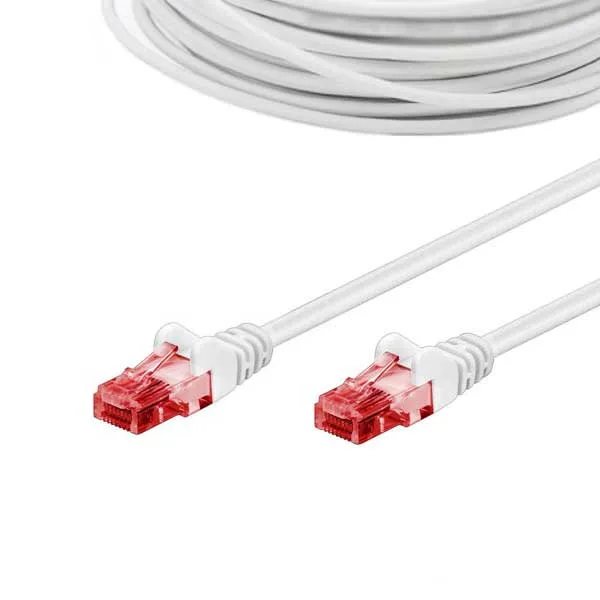

CAT 6 Patch Network Cable – 10 Metres

This network cable delivers reliable connections, supports data transfer rates of up to 10/100/1000/10000 Mbit/s and is compatible with Power over Ethernet (PoE, PoE+), giving high performance and stable connectivity for a wide range of high-speed network applications.

SKU 8228-WT50891EAN 4040849685002Item type: Assembled,

Description

This CAT 6 patch network cable is designed to support data transfer rates of 10/100/1000/10000 Mbit/s, giving high performance and stable connectivity for a wide range of high-speed network applications. Its kink-resistant sheath protects the cable from damage during installation and use, ensuring a long service life.

On top of that, compatibility with Power over Ethernet (PoE, PoE+) simplifies installation and reduces cable clutter, offering a complete and cost-effective solution for the connectivity needs of home and business networks.

Key features
  1. Copper conductor (CU): the cable uses high-quality copper conductors, which offer good conductivity and corrosion resistance.
  2. Gold-plated contact surfaces: the contact surfaces of the RJ45 connectors are gold-plated, ensuring a stable, high-performance connection.
  3. Latch guard on the RJ45 plug: the latch guard on the straight RJ45 plug helps prevent the risk of breakage or snagging during use, ensuring a reliable Internet connection.
  4. Kink-resistant sheath: the cable sheath is designed to resist kinking, effectively protecting the Ethernet cable from breaks and damage during installation and use.
  5. 10 Gigabit Ethernet support: the cable can support data transfer rates of up to 10 Gigabit per second (10/100/1000/10000 Mbit/s), making it suitable for a wide range of high-speed network applications.
  6. CAT 6 standard: This cable complies with the CAT 6 standard, which guarantees data transmission performance up to 250 MHz. That means it is suitable for high-speed data transfers and offers good resistance to interference.
  7. Power over Ethernet (PoE, PoE+) compatibility: the cable is designed to be compatible with Power over Ethernet (PoE, PoE+), allowing data and power to be carried over the same Ethernet cable.

Technical details

Cable length 10 metres
Shielding class U/UTP
Specification CAT 6
Cable type round cable
Inner conductor material CU (copper)
Sheath material PVC
Sheath colour light grey
Cable sheath diameter 5.9 mm
Connection type RJ45 (8P8C) plug with latch
Bandwidth 250 MHz
