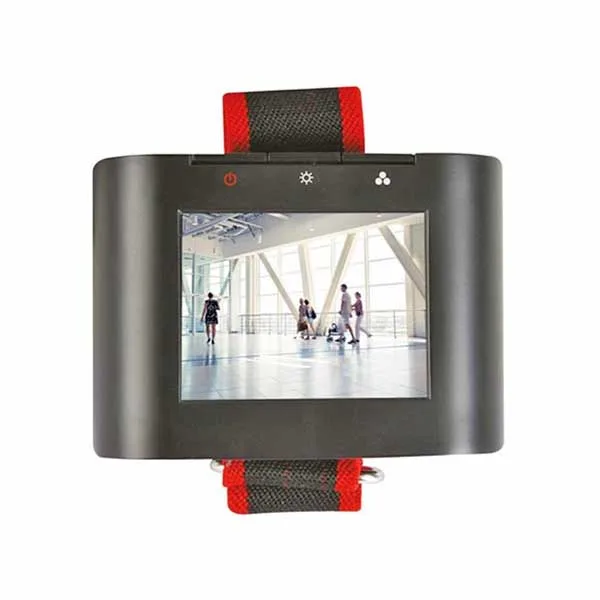

CCTV installation test monitor
This device is particularly well suited to checking that cameras (NTSC/PAL) are correctly installed
SKU 8220-MONCOLH2EAN 5410329435585Item type: AssembledAccessories
Description
This device is ideal for verifying the correct installation of NTSC/PAL cameras. It features a 2.36″ color LCD-TFT monitor, a practical arm strap, and a cable with camera input and 5 V power output. The monitor offers color and brightness adjustments to ensure optimal viewing.
Technical specifications
- Power supply: 5 Vdc via AC adapter (included) or internal 3.7 V / 950 mAh lithium-ion battery
Technical details
| Display format | Active-matrix TFT (4:3) |
|---|---|
| Display size | 2.36" |
| Resolution | 480 x 240 |
| Video input | 1 Vpp / 75 ohm (composite video) |
| Weight | 98 g |
| Dimensions | 88 x 62 x 23 mm |
| Operating temperature | 5°C ~ 40°C |
