Controller and radio remote for RGB LED strips

A 4-channel radio remote paired with an RGB LED strip controller: switch the individual colours on manually or automatically, and set the brightness and the length of the colour cycle

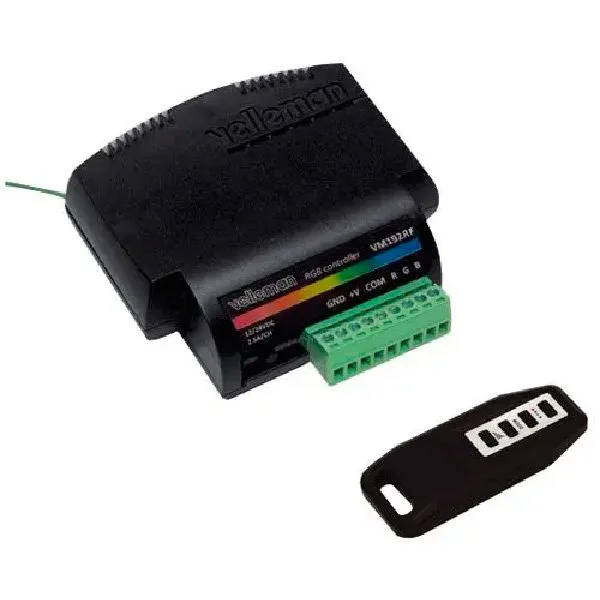

Controller and radio remote for RGB LED strips - Image 1

SKU 8220-VM192RFEAN 5410329553210Item type: Assembled

Description

Comprising a 4-channel remote control and a controller for RGB LED strips, it allows manual or automatic management of individual color activation, intensity adjustment, and the duration of the lighting cycle. Up to 5 remotes can be paired, multiple controllers can be used in the same room, and a single controller channel can be used to manage, for example, a single-color LED strip.

Technical specifications

  • Lighting cycle duration (R->G->B->R): 50s, 1m40s, 2m30s or 3m20s

Technical details

Power supply 12 to 24 Vdc
Current 2.5 A / channel max. (30W/12V, 60W/24V max.)
PWM frequency / resolution 245 Hz, 10-bit
Intensity levels 32
Max. ambient temperature 30°C
Transmitter frequency 433.92 MHz
Remote power supply 12V battery (included)
controller 80x70x23
remote 88x37x13
