Crimp IDC connector for 2×5 pin flat cable – female

Female in-line crimp IDC connector for 10-pin (2x5 pin) flat cable with 2.54 mm pitch
Crimp IDC connector for 2x5 pin flat cable - female - Image 1

SKU 2846-CONNFC10PEAN 8219671106733Item type: Assembled

Description

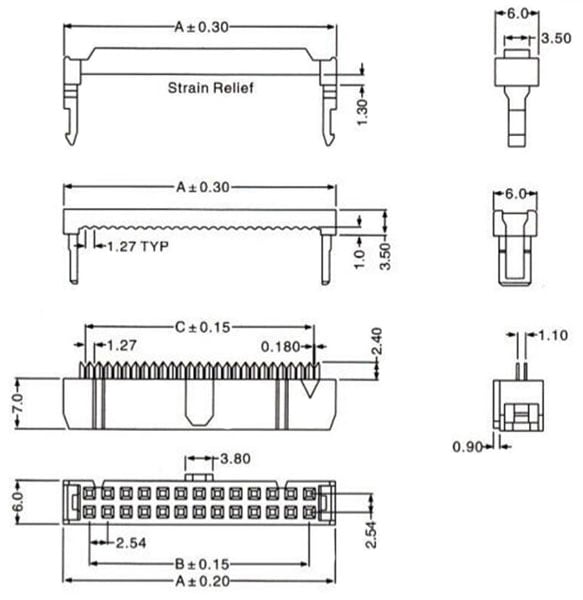

Female in-line crimp IDC connector for 10-pin (2×5 pin) flat cable with 2.54 mm pitch. Dimensions (mm): 17.3×18.3×6, weight: about 5 grams.



Technical details

Dimensions (mm) 17.3x18.3x6
weight about 5 grams
