DAC Audio Converter with I2S Interface

Digital-to-analogue audio converter with I2S interface.

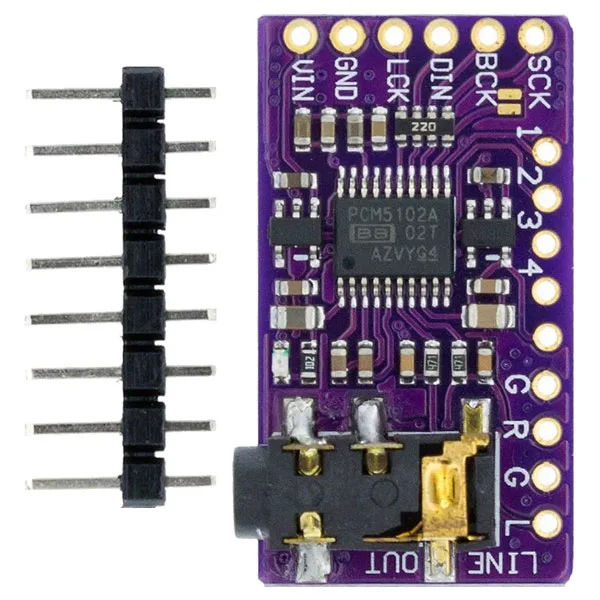

DAC Audio Converter with I2S Interface - Image 1

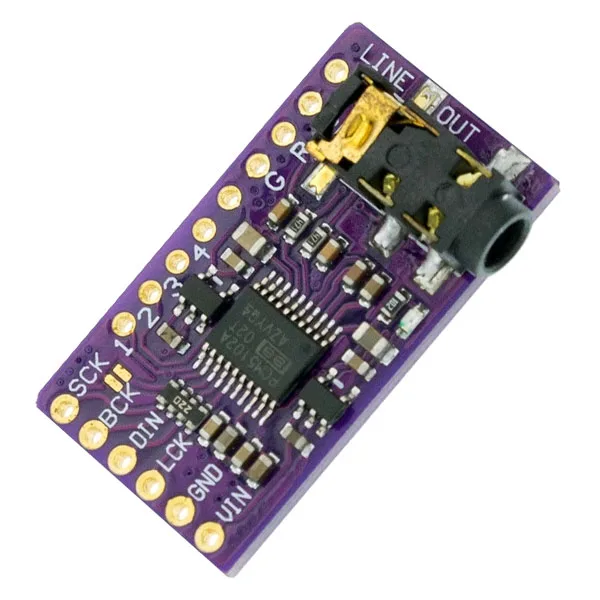

DAC Audio Converter with I2S Interface - Image 3

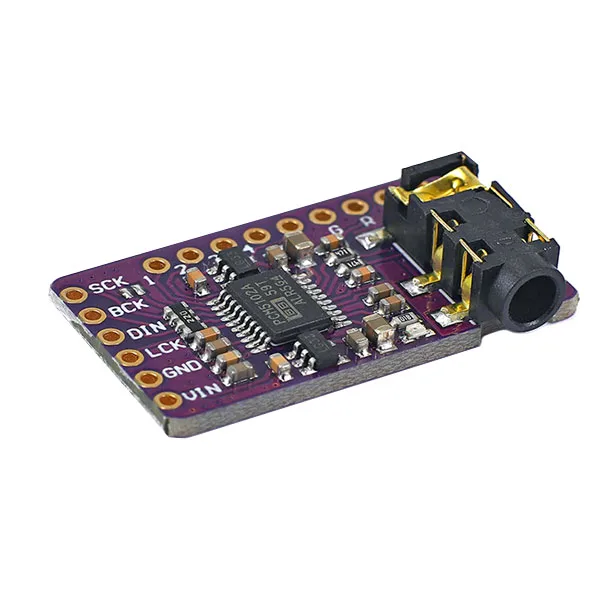

DAC Audio Converter with I2S Interface - Image 4

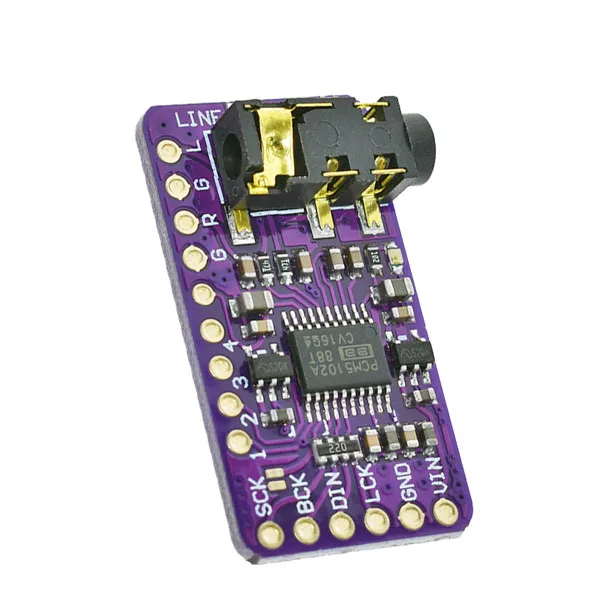

DAC Audio Converter with I2S Interface - Image 5

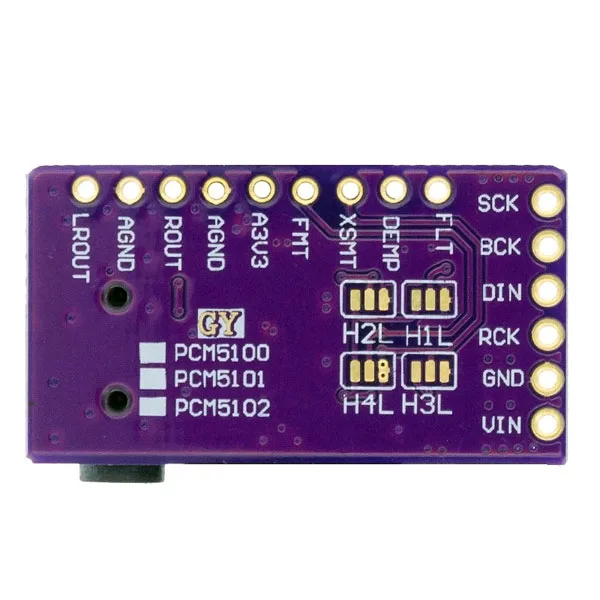

DAC Audio Converter with I2S Interface - Image 6

SKU 2846-I2SPCM5102AEAN 8219671107327Item type: Assembled

Description

Compact digital-to-analogue audio converter based on the 32-bit PCM5102A chip, with a sampling rate of 384 kHz and I2S interface. It features audio output via a 3.5 mm stereo jack (not suitable for earphones, only for audio power amplifiers), a high-performance audio PLL, and intelligent mute. Power supply: 5 volts.

Warning! do not power with a voltage higher than 5 V and do not reverse the polarity.
Technical specifications
  • Digital audio interface: I2S
  • Intelligent mute system
Documentation and useful links

Technical details

Power supply 5 volts
Channels 2
Signal-to-noise ratio (SNR) 112 dB
Sampling rate from 8 kHz to 384 kHz
Digital audio interface I2S
Data format PCM
Resolution 32-bit
Audio output 3.5 mm jack (not suitable for earphones, only for audio power amplifiers)
High-performance audio PLL built in
Dimensions (mm) 31.4x17.5x6.3
Supports Raspberry Pi 2 Model B, / 3 / 3 B+
