Digital Audio (S/PDIF or Toslink) to Analog Stereo Converter

Compact and easy to carry, it converts an incoming digital audio signal (S/PDIF coaxial or Toslink) into an analog stereo audio signal at the output. Supports 32 kHz, 44.1 kHz, 48 kHz, 96 kHz audio formats

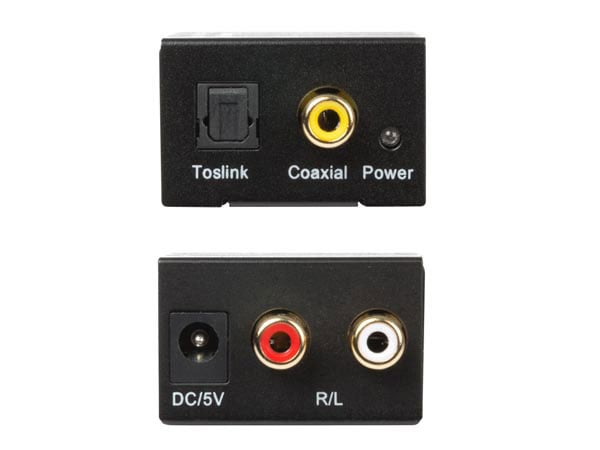

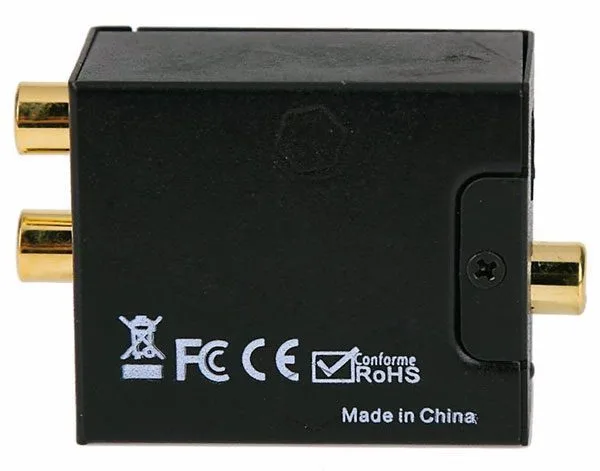

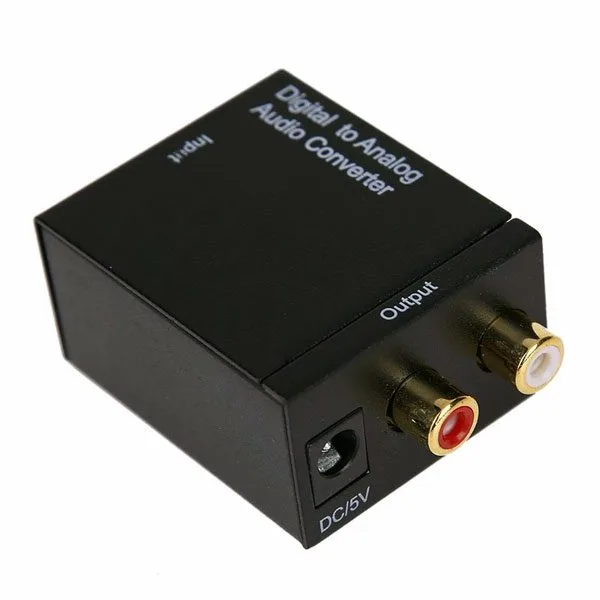

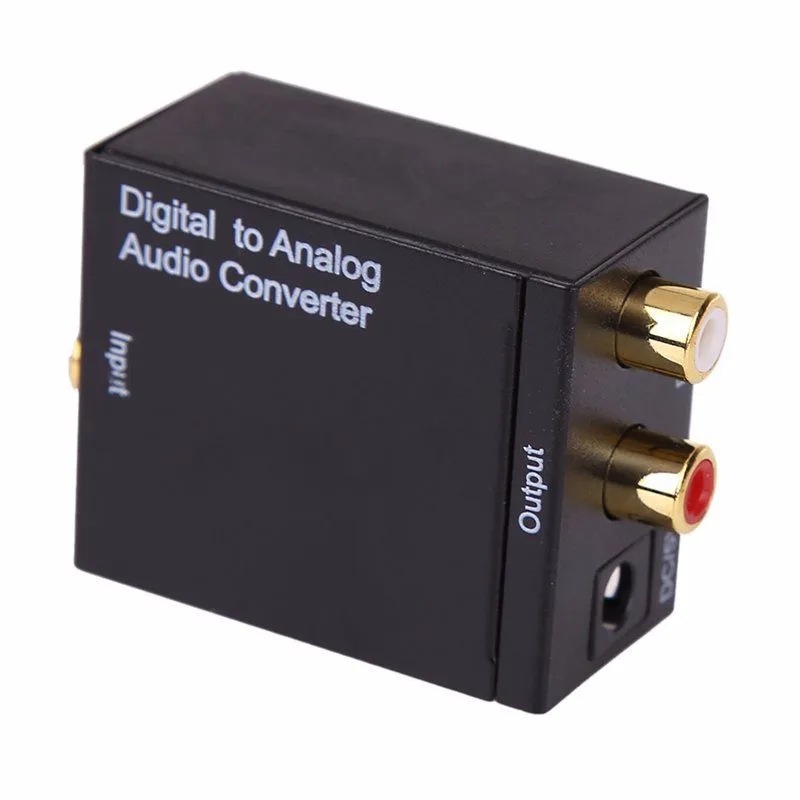

Digital Audio (S/PDIF or Toslink) to Analog Stereo Converter - Image 1
Digital Audio (S/PDIF or Toslink) to Analog Stereo Converter - Image 3
Digital Audio (S/PDIF or Toslink) to Analog Stereo Converter - Image 4
Digital Audio (S/PDIF or Toslink) to Analog Stereo Converter - Image 5
Digital Audio (S/PDIF or Toslink) to Analog Stereo Converter - Image 6

SKU 2846-DAACEAN 8219671097079Item type: Assembled

Description

Compact and easy to carry, it converts an incoming digital audio signal (S/PDIF coaxial or Toslink) into an analog stereo audio signal at the output. Supports 32 kHz, 44.1 kHz, 48 kHz, 96 kHz audio formats. Power supply: 5 VDC – 1 A.

The package includes the converter and the USB-to-DC plug cable.

Note: power adapter not included, see related products.
Technical specifications
  • Input:
    – digital coaxial audio: S/PDIF
    – optical audio: Toslink®

Technical details

Power supply 5 VDC – 1 A
digital coaxial audio S/PDIF
optical audio Toslink®
Output analog stereo audio – 2 RCA jacks
Supported audio format 32 kHz, 44.1 kHz, 48 kHz, 96 kHz
Power consumption max. 0.5 watt
Dimensions (mm) 65x42x27
Weight 78 grams
