Digital Microscope 1-1200X with 7″ Color LCD Monitor
SKU 8100-LCDMICROS7EAN 8219671105224Microscopes
Description

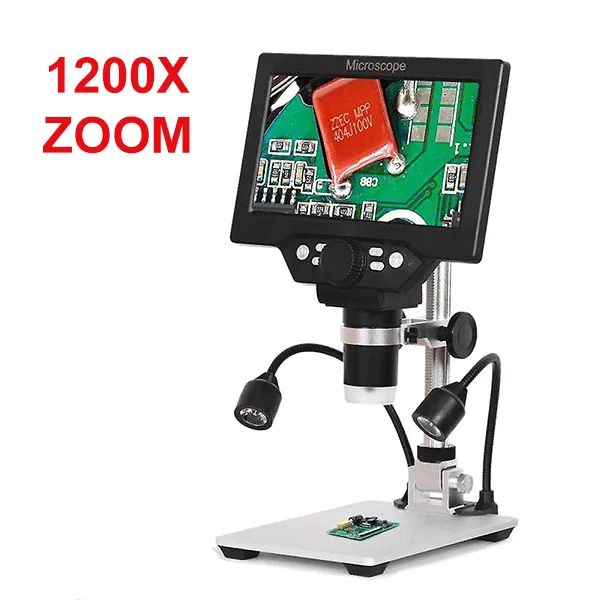

| Digital microscope with a large 7-inch color LCD monitor and magnification up to 1200X. This microscope replaces the eyepiece found on traditional microscopes with a color camera that “sees” the sample at up to 1200X magnification and displays the image on the high-resolution LCD screen. Photos and videos of magnified objects can be saved to an SD card inserted in the dedicated slot (max 128GB, not included) for easy data transfer.

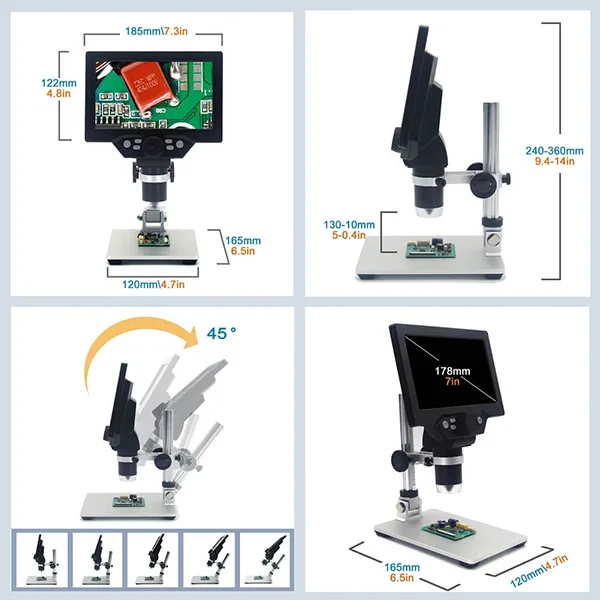

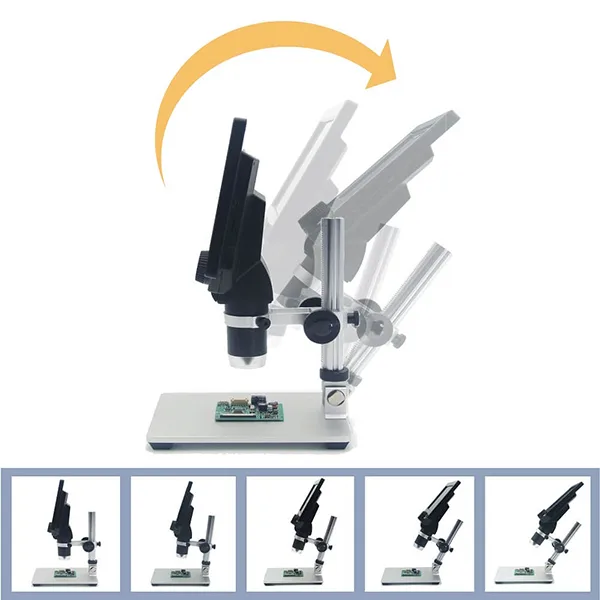

The microscope has a stable aluminum base and dual LED lights on flexible arms; the observation distance from the sample can be easily adjusted using the rack-and-pinion stand, which allows a distance ranging from 10 to 130mm. The screen rotates 360° and tilts, making it easy to find the optimal orientation for a more comfortable, precise view. The microscope can run on its built-in lithium battery or via the supplied USB power adapter. The package includes: the microscope, the mains power adapter, and instructions. This portable digital microscope is the perfect solution for inspection and analysis applications in industrial settings, and is ideal for anyone looking for an easy-to-use microscope with excellent image quality.
|
| Applications |
|
 |
|
Technical specifications
|
|
|
Magnification Example
|
Technical details
| Industrial inspection | PCBs |
|---|---|
| Camera | HD 12MPX |
| Display | 7" HD LCD |
| Magnification | 1-1200X, continuous zoom system |
| Data storage | SD card, max 128GB (not included) |
| Video resolution | 1080FHD, 720P, VGA |
| Photo resolution | up to 12 Mpx |
| Working distance | 10mm to infinity (different distances correspond to different magnifications) |
| Weight | 900 grams |
