Dual linear potentiometer 100 kohm

Dual linear potentiometer, 100KΩ, with 6 terminals, ideal for precise signal adjustment in electronic and audio circuits. Fitted with a knurled, split shaft, compatible with most standard knobs.

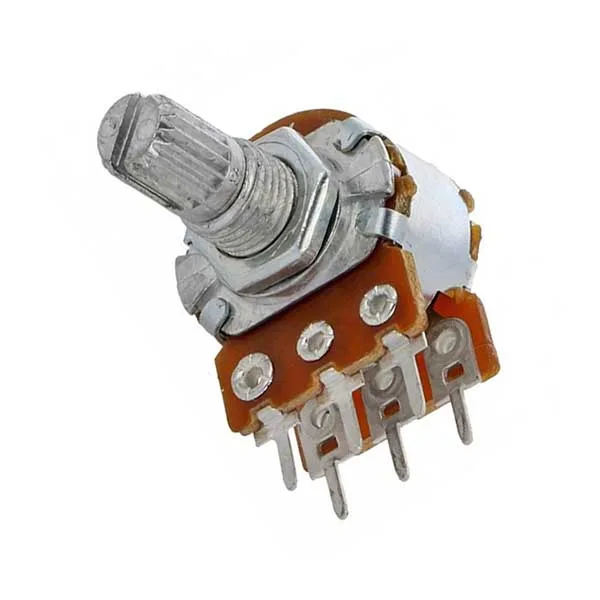

Dual linear potentiometer 100 kohm - Image 1

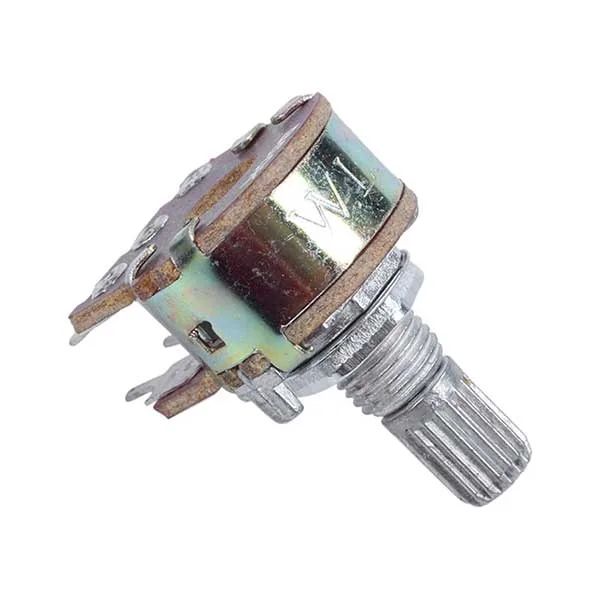

Dual linear potentiometer 100 kohm - Image 3

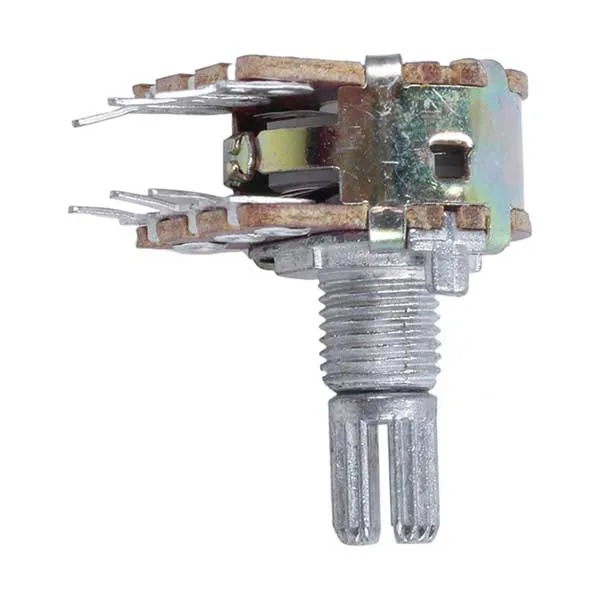

Dual linear potentiometer 100 kohm - Image 4

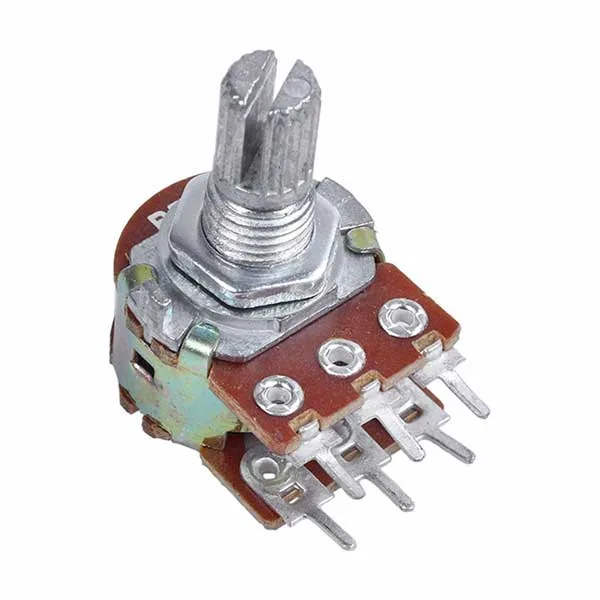

Dual linear potentiometer 100 kohm - Image 5

SKU 2412-POT2X100KEAN 8219671108218Item type: Assembled

Description

Dual linear potentiometer (B), 100KΩ with 6 terminals, ideal for precise signal adjustment in electronic circuits. Thanks to its two independent sections, it is perfect for stereo applications, voltage control and other variable adjustments.

Fitted with a knurled, split shaft, compatible with most standard knobs, it ensures easy installation and smooth adjustment over time.

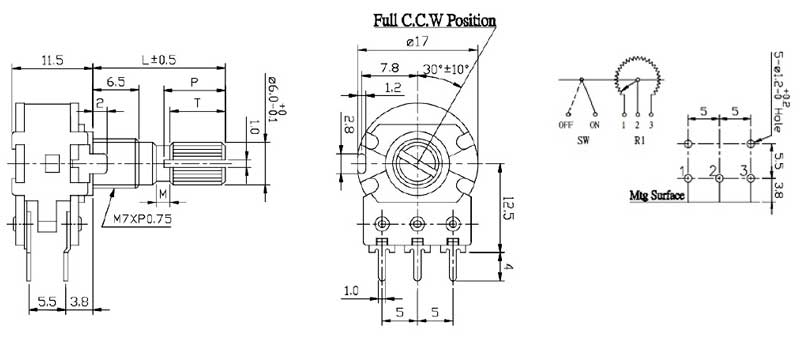

POT2X100K - potenziometro tipo B doppio 100K

Technical details

Resistance value 100 Kohm
Number of pin contacts 6
Tolerance 20%
Adjustment type Linear
Body diameter 17mm
Pitch 5mm
Shaft length 15mm
Thread diameter 7mm
Rotating shaft length 7mm
Shaft diameter 6mm
