Extruder Body Set for the 3DRAG Printer

Description

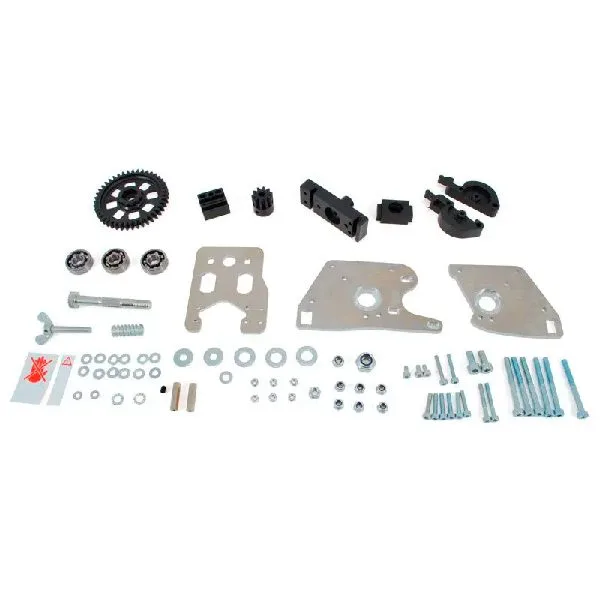

Extruder body set for the 3DRAG printer. Includes: 1 pc extruder body base in Delrin, 1 pc extruder lower guide in Delrin, 4 pc 2.9 x 9.5 TB cross self-tapping screws, 1 pc extruder upper guide in Delrin, 2 pc 20 mm hexagonal M/F standoff, 2 pc M3 x 25 TB cross screws, 2 pc M3 x 6 flat washers, 1 pc 4 mm anodized aluminum extruder front plate, 1 pc 4 mm anodized aluminum extruder rear plate, 6 pc M4 x 40 TCEI screws, 12 pc M4 x 8 flat washers, 6 pc M4 self-locking nuts, 1 pc Delrin left half-shell for extruder bearing pusher (2 countersunk holes for M4 screw), 1 pc Delrin right half-shell for extruder bearing pusher (2 M4 threaded holes), 1 pc 8 x 22 x 7 mm bearing, 2 pc M4 x 20 TSEI screws, 1 pc Delrin support for extruder spring, 1 pc M5 x 30 wing screw, 1 pc M5 low-profile nut (3.9 mm), 1 pc M5 self-locking nut, 1 pc M5 x 10 flat washer, 1 pc 22 mm spring (inner Ø 6.3 – outer Ø 9.2 – wire Ø 1.3 mm), 1 pc Delrin gear wheel (Ø 66 mm – 43 teeth) for extruder, 1 pc Delrin pinion (Ø 18 mm – 10 teeth) for extruder motor, 1 pc M4 x 6 set screw, 1 pc M8 x 70 TE drive screw (with 15 longitudinal grooves), 3 pc M8 x 16 flat washers, 2 pc 8 x 22 x 7 mm bearings, 1 pc M8 self-locking nut, 3 pc M3 x 6 TB cross screws, 4 pc M3 x 12 TB cross screws, 1 pc 3 mm anodized aluminum bracket for extruder body mounting, 2 pc M5 x 12 TCEI screws, 2 pc M5 toothed washers, 2 pc M5 x 15 flat washers.
