Fan 12 Vdc 60x60x25 mm

Sleeve bearing cooling fan, 12Vdc.

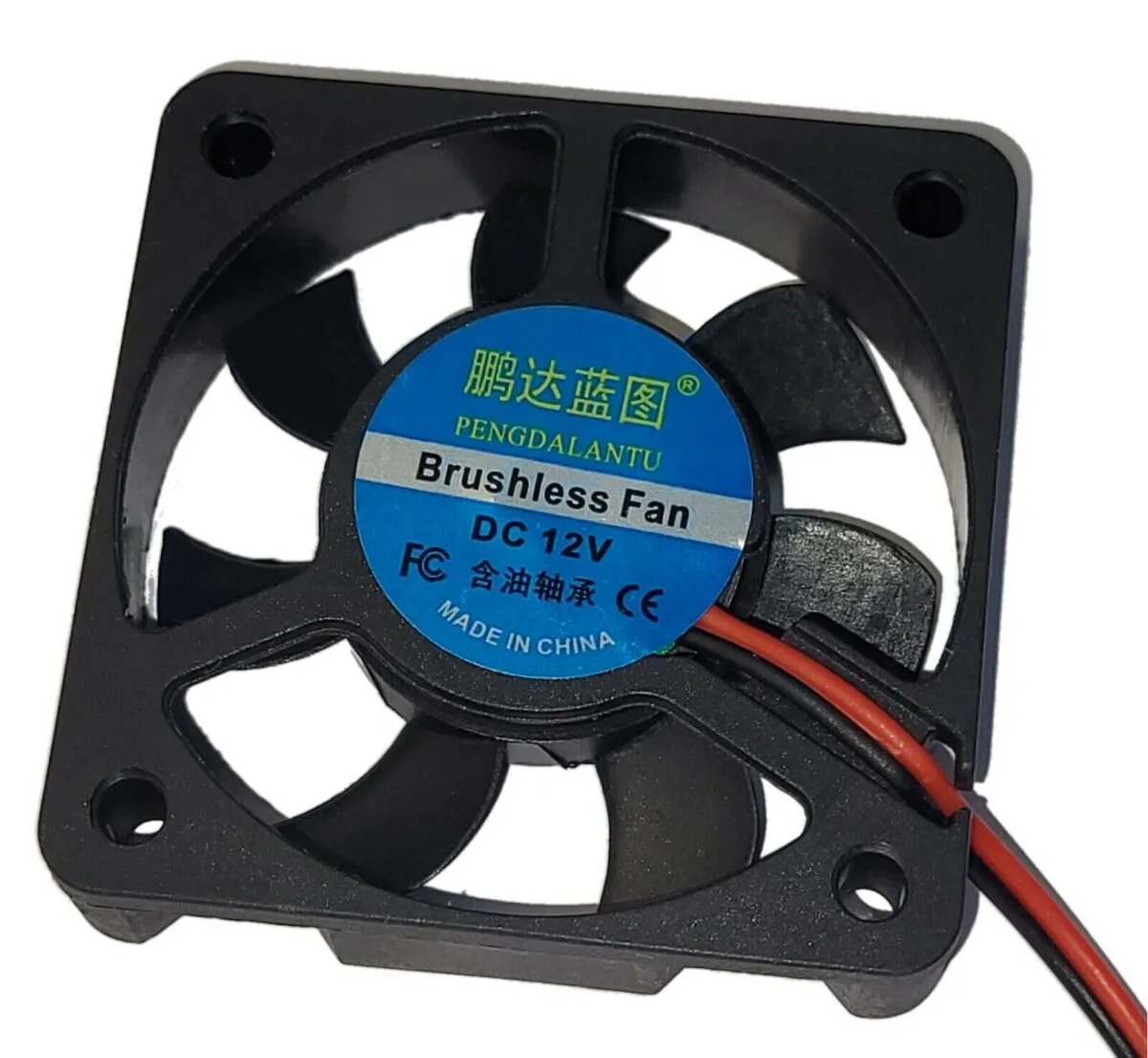

Fan 12 Vdc 60x60x25 mm - Image 1

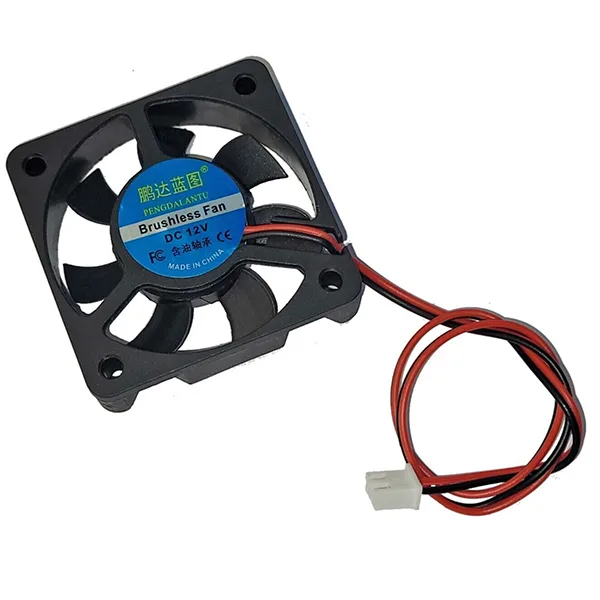

Fan 12 Vdc 60x60x25 mm - Image 3

SKU 2846-VENTOLA6060_12VEAN 8219671118811Item type: Assembled

Description

Sleeve bearing cooling fan measuring 60x60x25 mm, suitable for a range of applications.

The fan needs a 12 Vdc supply and draws 0.23 A while running. It has a wire connection roughly 27 cm long, and the connector used is a 2-pin JST-XHP with 2.54 mm pitch.

The body and the blades of the fan are made of plastic, light and hard-wearing. Weight about 60 grams.

Technical details

Dimensions 60x60x25mm
Rated voltage 12V
Current draw 0.23A
Speed 3500±10% RPM
Airflow 13.21~21.08 CFM
Noise level 25 dBA
Cable length 27 cm
Weight 60g
