Handheld Lux Meter – 0 – 199900 Lux

Extremely precise, reliable UNI-T digital lux meter for measuring the illuminance produced by LEDs (visible light), fluorescent lamps, metal halide lamps, high-voltage sodium lamps or incandescent lamps

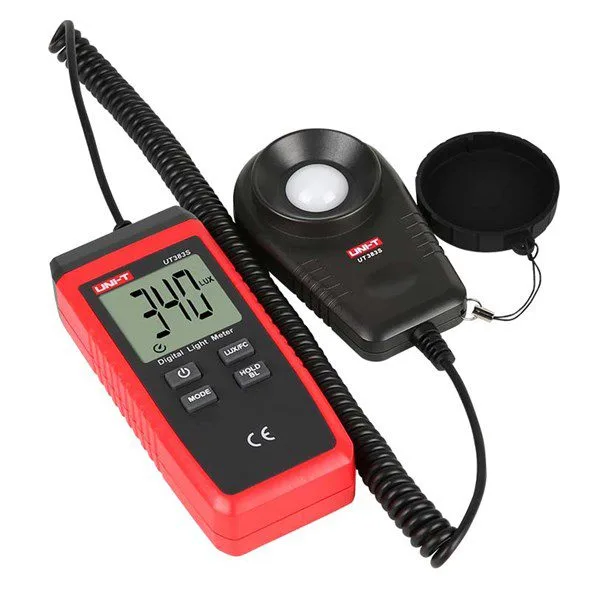

Handheld Lux Meter - 0 - 199900 Lux - Image 1

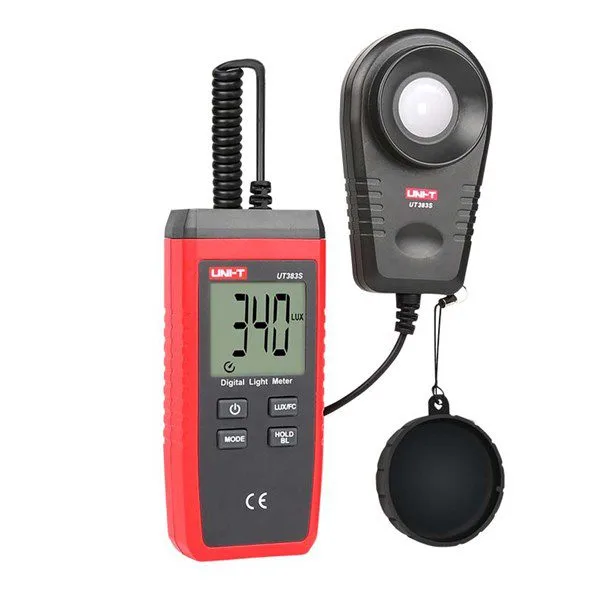

Handheld Lux Meter - 0 - 199900 Lux - Image 3

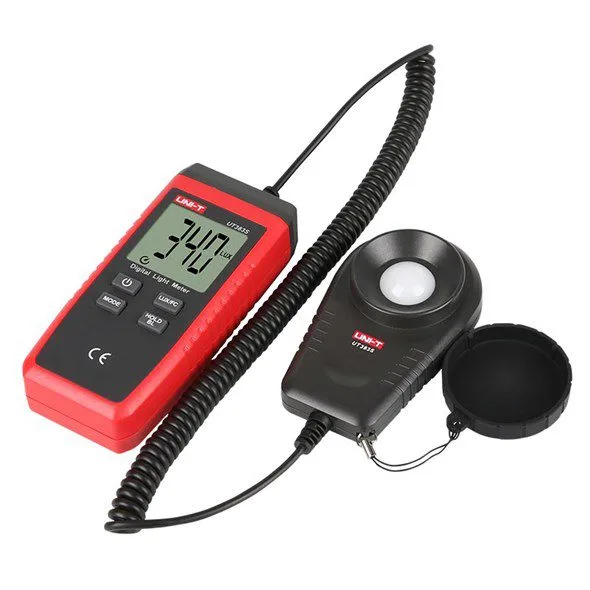

Handheld Lux Meter - 0 - 199900 Lux - Image 4

SKU 8240-TP0063EAN 6935750538326Product type: Environmental & research instrumentsBrand: UNI-T

Description

Extremely accurate and reliable UNI-T digital lux meter for measuring illumination produced by LEDs (visible light), fluorescent lamps, metal halide lamps, high-pressure sodium lamps, or incandescent lamps. It features a sensor employing a silicon photodiode with a color correction filter, a 4-digit LCD display with backlight, selectable LUX / FC measurement units, min and max indication, low battery indication, auto power off, and data hold. Power: 3 AAA batteries, 1.5 V (included). User manual in Italian.

Technical details

Measurement range 0 to 199900 Lux
Lux resolution 1 Lux (0-9999), 10 Lux (≥ 10000), 100 Lux (≥ 100000)
Sampling rate 0.5 s
Auto power off yes
Display dimensions 32 x 35 mm
Device dimensions 110 x 53 x 26 mm
Power 3 AAA batteries (included)
Measurement units Lux, FC
Operating temperature 0 to 40°C
Relative humidity <80 %
Weight 250 g
