INA125 Amplifier IC

The INA125 IC is a low-power, high-precision amplifier, developed specifically for managing measuring instruments

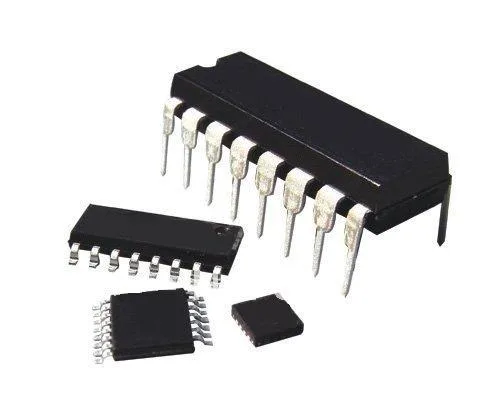

INA125 Amplifier IC - Image 1

SKU 1350-INA125EAN 8219671049160Item type: Assembled

Description

The INA125 integrated circuit is a low-power, high-precision amplifier specifically designed for managing measurement instruments. A single external resistor sets a gain from 4 to 10,000. Pins 6 and 7 represent the differential input of the amplification stage; pins 8 and 9 can be used to connect a gain adjustment resistor. The amplified output is available on pins 10 and 11. Power supply: from 2.7 V to 36 V, operating temperature: from -40°C to +85°C, Case: DIP16.
