LCD charge indicator for lead-acid, lithium and lithium iron phosphate batteries – White

Description

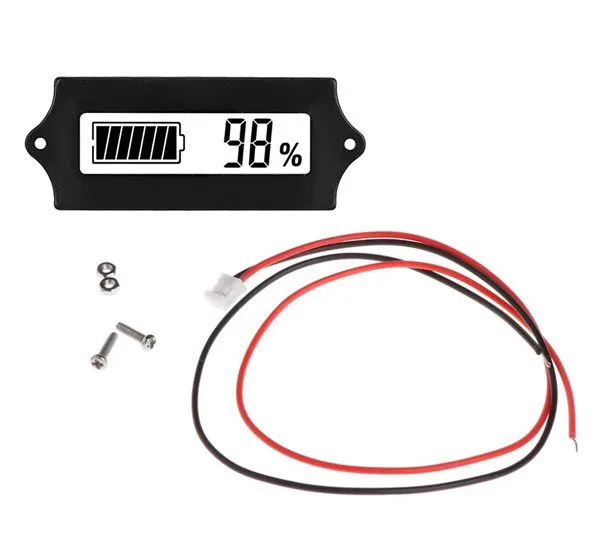

Keep an easy eye on the charge level of your batteries with this compact, accurate LCD charge indicator.
With its white backlight, this instrument gives you a clear, quick reading of the charge level and charge percentage of lead-acid (12-60V), lithium-ion (3.7V, 3-15 cells) and lithium iron phosphate (3.2V) batteries.

Setting it up is simple: just select the battery type and the number of cells with a handy button.
Its flexible display modes let you choose between alternating readings, automatic switch-off, or backlight control to save power.

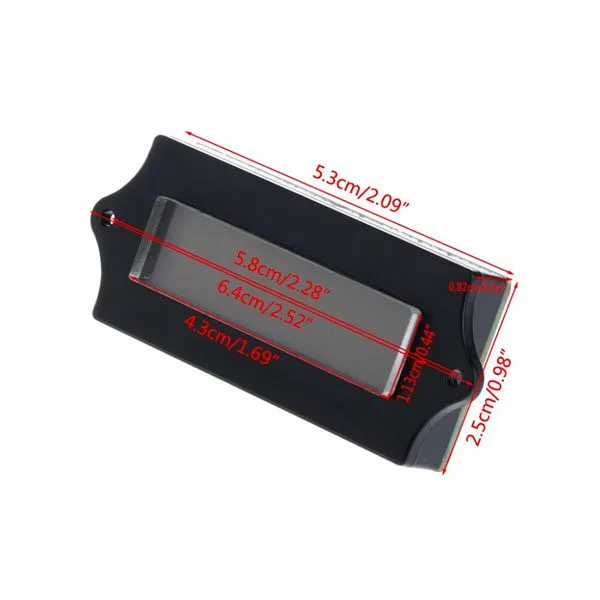

Compact and light, measuring just 64x25x13 mm, it is the perfect accessory for monitoring battery status in any situation.

Technical features

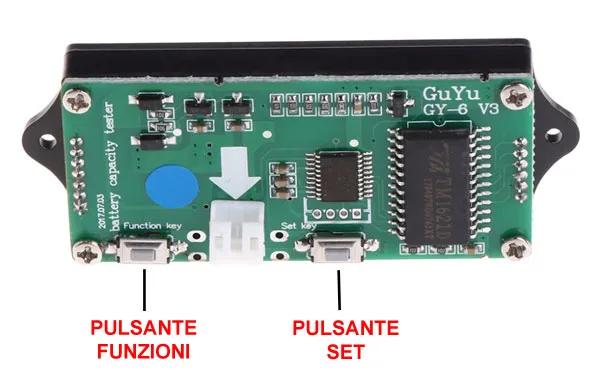

Operation: 1 – Press and hold the “Set button” on the back of the instrument and, keeping it pressed, connect the battery to be tested; release the button and press it repeatedly until the type of battery to be tested is shown (“P” for lead-acid batteries, “F” for lithium iron phosphate and “L” for lithium-ion).2 – Press the “Function button” briefly to select the number of cells, then press and hold the “Function button” to enter display mode.Select S-1 to show the charge level and the charge percentage of a battery alternately every 2 seconds. Select S-2 to switch the display off after 10 seconds. Select S-3 to be able to switch the backlight on and off. S-4 and S-5 are reserved. 3 – When you have finished setting up, disconnect and reconnect the battery; the display will then show the charge percentage and level.
