LED 10 W GREEN 525 nm

High-brightness green Super LED, 10 watt power, over 50,000 hours of operation
LED 10 W GREEN 525 nm - Image 1

SKU 2846-LED10WVERDEEAN 8219671100502Item type: Assembled

Description

Green Super LED with high brightness, 10 watt power, over 50,000 hours of operation. Green color, dominant wavelength: 525 nm, luminous flux: 500-700 lumen, viewing angle: 120°, mounting: SMT, no UV emission.

Technical characteristics

WARNING! A heatsink is required to dissipate heat.

Technical details

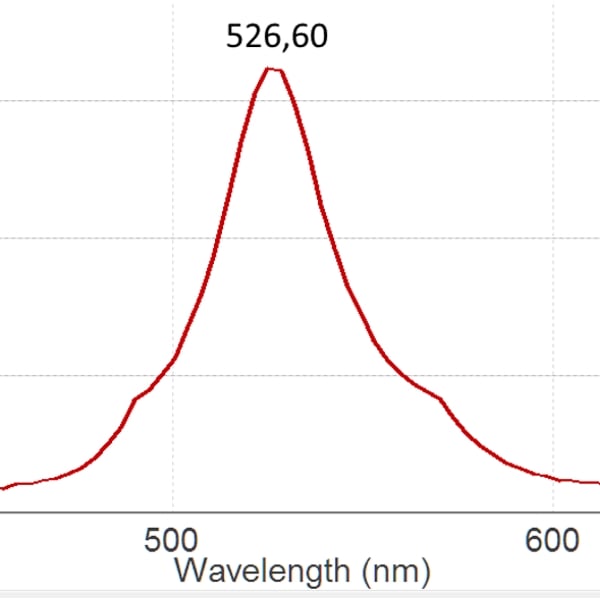

dominant wavelength 525 nm
luminous flux 500-700 lumen
viewing angle 120°
mounting SMT, no UV emission
Voltage 8-10 VDC
Current 1050 mA
Beam angle 120°
Power 10 W
Wavelength 525 nm
