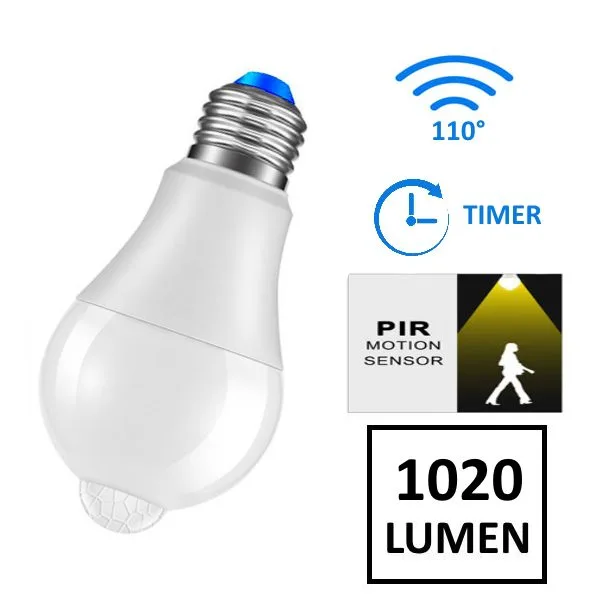

LED Lamp 12W with PIR and Dusk Sensor – Cool White

12 watt cool white LED lamp with built-in PIR and dusk sensor

SKU 1606-LEDPIRBULBEAN 8219671109369,

Description

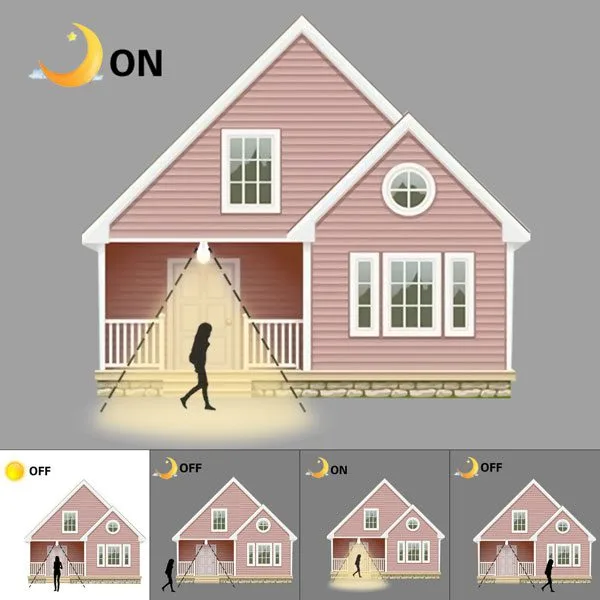

12-watt LED lamp with cold light, featuring integrated PIR and twilight sensors. The PIR sensor can detect movement at a maximum distance of 5 meters, and if the ambient brightness detected by the twilight sensor is below a certain threshold, the lamp turns on. If no movement is detected for about 30 seconds, the lamp turns off.

PIR AND TWILIGHT SENSOR

  • Twilight sensor: allows the lamp to turn on only below a certain ambient brightness threshold

BULB

  • Energy consumption kWh / 1000 hours: 10
  • Average life: 25,000 hours
  • Base: E27
  • Protection rating: IP42
  • Operating temperature: from -40°C to +55°C
  • Humidity: 10-95%RH
  • Dimensions (mm): Ø 69.55×141
  • Weight: 60 grams

Technical details

Detection distance 2-5 meters
Detection angle 110°
On duration approximately 30 seconds (if no movement is detected)
LED 12 LED 2835SMD
Rated power 12 watts
Power supply 85-265 VAC
Dimmable No
Color Cool white
Color temperature 6000 K
Beam angle 220°
Luminous flux 1020 lumens
Color rendering index >85
Start-up time < 0.5 s
Warm-up time (60%) < 1 second
