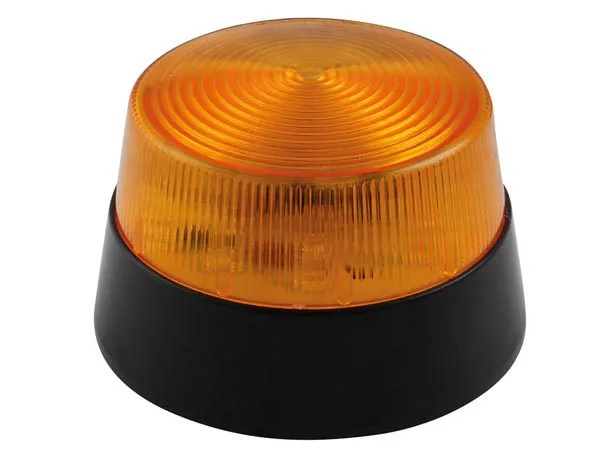

LED Strobe Beacon – Amber

Beacon with a lamp made up of 15 white LEDs
LED Strobe Beacon - Amber - Image 1

SKU 8220-HAA40ANEAN 5410329626976Item type: Assembled

Description

Flashing beacon with a lamp made up of 15 white LEDs. Particularly suitable for alarm systems, to signal dangers, to attract attention, etc. Watertight housing with amber acrylic cover, black ABS base and screw fixing.
N.B. not suitable for outdoor use.

Technical details

Cover color amber
Number of LEDs 15 white
Power supply 12 Vdc (min. 6 V - max. 15 V)
Current draw approx. 120 mA
Flash rate 80-100 per minute
Material ABS / acrylic
Dimensions 77 (Ø) x 45.7 mm
Protection rating IP20
Connection red (+) and black (-) wire, approx. 40 cm long
