LM35-based automatic cooling fan control board

Turns the cooling system's fan on and off, depending on the connected system's detected temperature.
LM35-based automatic cooling fan control board - Image 1

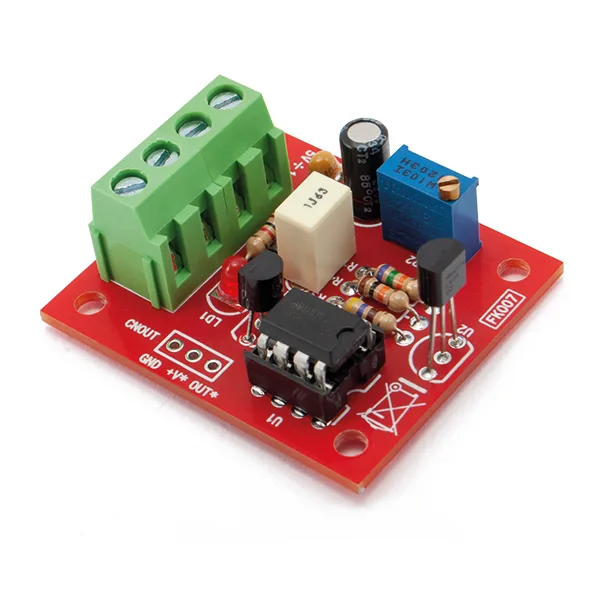

LM35-based automatic cooling fan control board - Image 3

SKU 7100-FK007Item type: Assembled, Kit

Description

This board can turn your cooling system’s fan on and off depending on the detected temperature.
With the on/off threshold set via the onboard trimmer, you can easily adjust it to the temperature you want.
The board’s supply voltage ranges from 5 to 12 Vdc, with a maximum current draw of 500 mA.
The LM35’s detectable temperature range is -55°C to +150°C; our circuit is able to detect temperatures from 2°C to +150°C. It’s also extremely versatile thanks to its MOSFET, voltage-level output.
Its compact 36x42x20 mm size makes the board easy to install and use.
Cool your electronic system efficiently and precisely with our LM35-based automatic cooling fan control board!

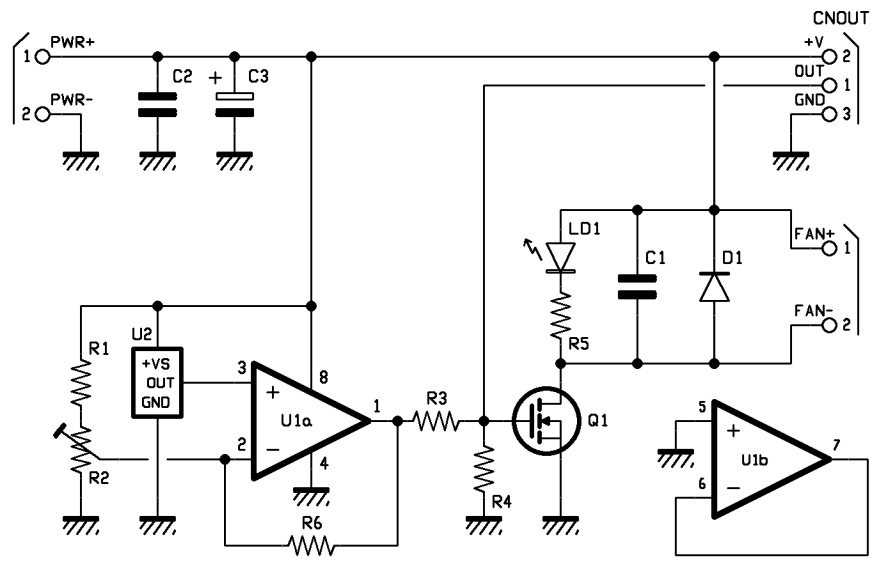

Circuit diagram
Technical features
  • Fan on/off temperature adjustable via trimmer

Technical details

Supply voltage 5 ~ 12 Vdc
Maximum current draw 500 mA
Control mode On/Off
Detectable temperature 2°C ~ +150 °C
MOSFET output voltage-level
Dimensions (mm) 36x42x20
