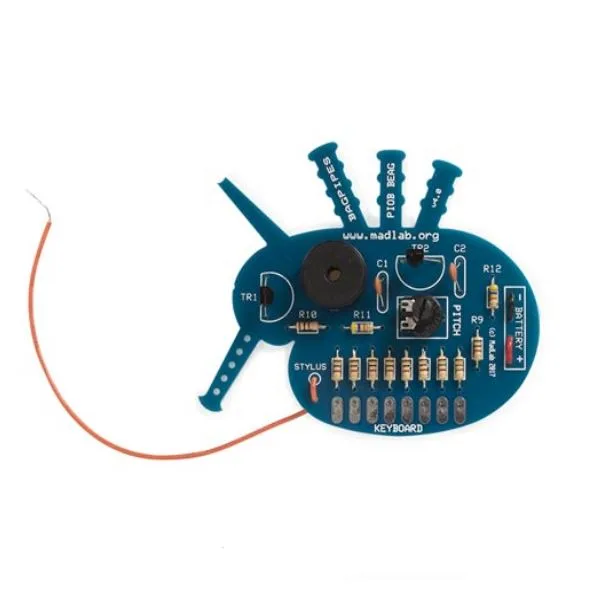

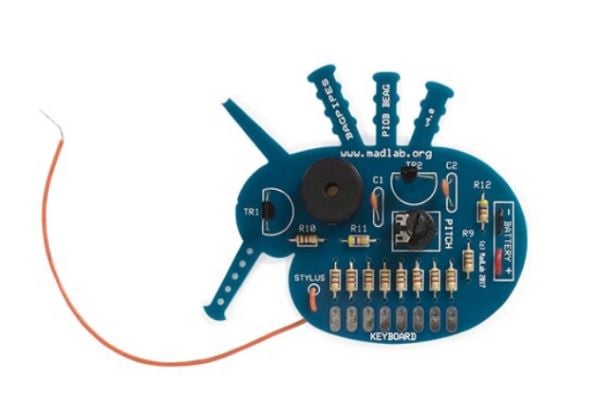

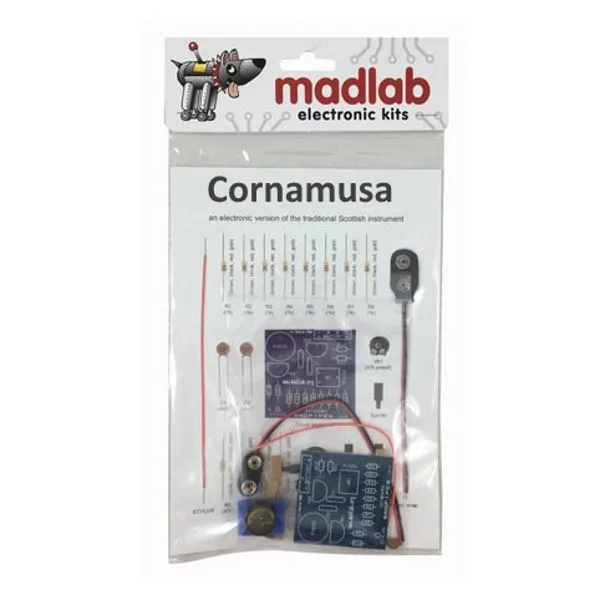

MADLAB Educational Kit – Bagpipes
This kit builds a small set of bagpipes able to play eight different notes between 5KHz and 300 Hz.
SKU 8220-MLP104ITEAN 5410329685041Item type: KitGadgets, Games
Description
| This kit builds a small set of bagpipes able to play eight different notes between 5KHz and 300 Hz. Ideal for getting to know electronic components and for learning to solder.Step-by-step assembly instructions.
|
 |
 |
| Parts list and circuit diagram |
|
 |
Technical details
| Power supply | 9 volt battery (not included – see the related products) |
|---|---|
| Dimensions (mm) | 60 x 60 x 16 |
| R1 | 1 kohm |
| R2 | 1 kohm |
| R3 | 1 kohm |
| R4 | 1 kohm |
| R5 | 1 kohm |
| R6 | 1 kohm |
| R7 | 1 kohm |
| R8 | 1 kohm |
| R9 | 1 kohm |
| R10 | 47 kohm |
| R11 | 47 kohm |
| C1 | 4.7 nF ceramic |
