Mini 12 VDC Electric Lock for cabinets

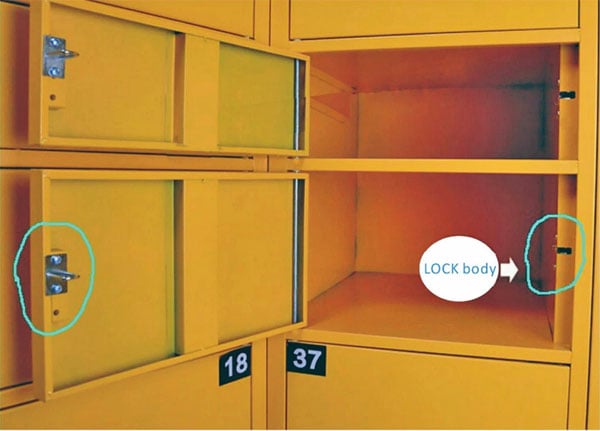

Mini solenoid electric lock with locking hook, particularly suitable for cabinets, drawers, etc.

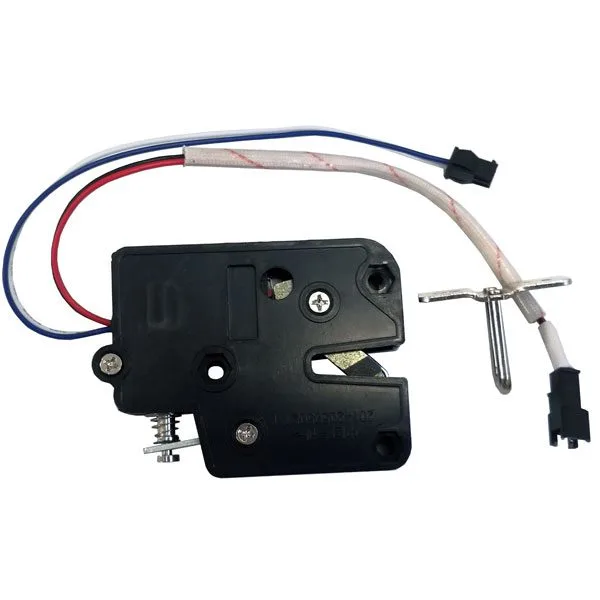

Mini 12 VDC Electric Lock for cabinets - Image 1
Mini 12 VDC Electric Lock for cabinets - Image 3

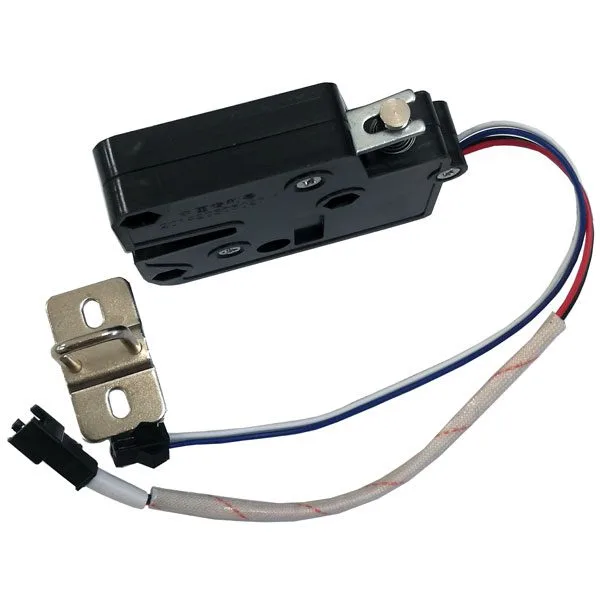

Mini 12 VDC Electric Lock for cabinets - Image 4

SKU 2846-ELLOCKBLK12VEAN 8219671113854Item type: Assembled

Description

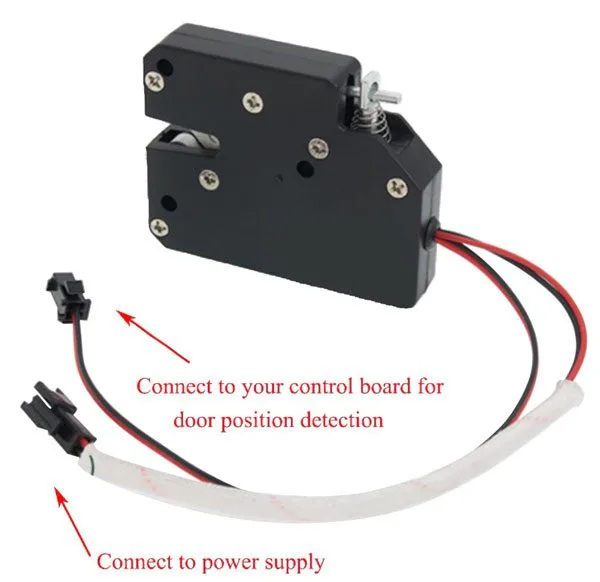

Mini solenoid electric lock with locking hook, particularly suitable for cabinets, drawers, etc. It also has two feedback wires: when the hook is engaged, the contact on the two wires is normally open, while if the hook is removed the contact is closed. Power supply: 12 VDC (pulsed), consumption: 1.5 A, release time: 1 second, dimensions (mm): 74x56x15, weight: 70 grams, operating temperature: from -40°C to +50°C, body material: ABS.
