Mini Hydroelectric Generator – 9.8 to 15 Vdc output

Fitted into a half-inch pipe it delivers 128 to 260 mA, with a water flow between 1.5 and 20 litres per minute.

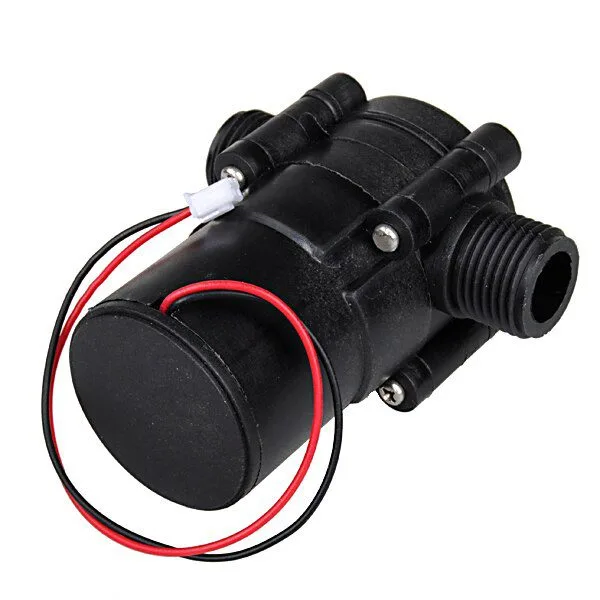

Mini Hydroelectric Generator - 9.8 to 15 Vdc output - Image 1

SKU 7300-MINIDROGENEAN 8219671022422Item type: Assembled

Description

Mini hydroelectric generator. When water flows through it, it generates an output voltage from 9.8 to 15 VDC and a current from 128 to 260 mA. It can be installed in your home to obtain clean energy, recharge batteries, power small devices, etc.

Technical details

Output voltage from 9.8 to 15 VDC
Output current from 128 to 260 mA
Operating pressure from 0.08 to 0.55 MPa (max. 1.6 MPa)
Recommended flow rate from 1.5 to 20 liters/minute (pressure 0.05-0.2 MPa)
Material nylon / fiberglass, polyoxymethylene
Connection 1/2 inch
Operating temperature from +5°C to +85°C
Dimensions (mm) 81x58 (diameter excluding connections)
Weight 125 g
