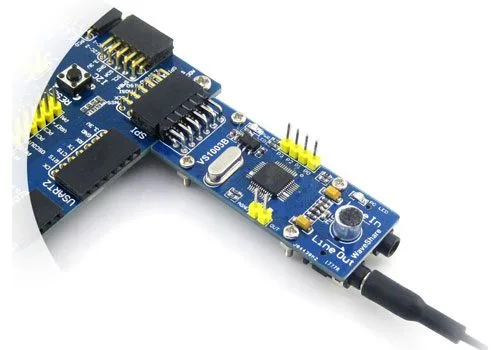

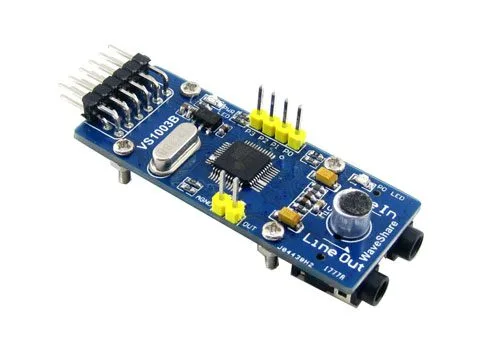

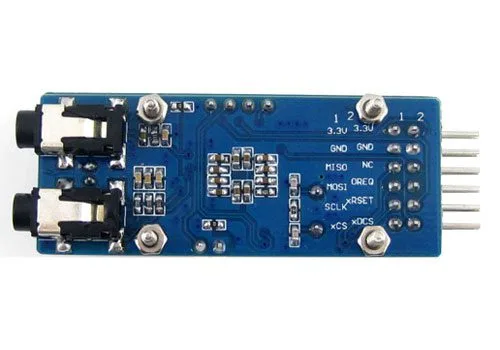

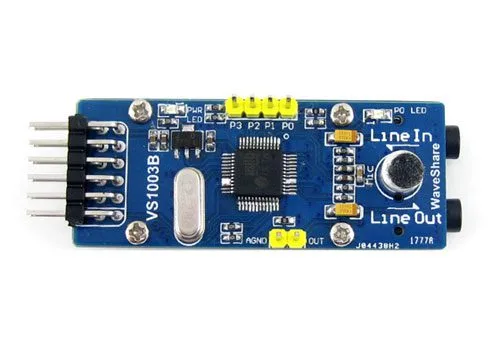

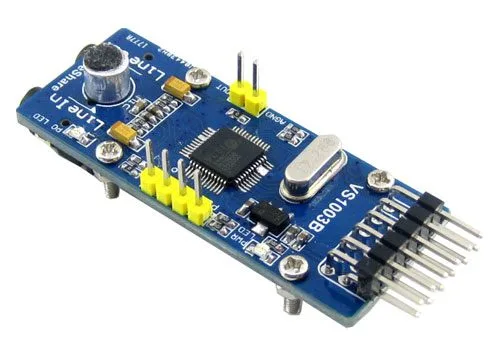

MP3 Decoder Board with VS1003B
SKU 2850-VS1003BBOARDEAN 8219671072649Item type: AssembledAccessories
Description
Electronic board based on the VS1003B chip, an MP3/WMA/MIDI audio decoder and ADPCM encoder. The VS1003 contains a high-performance, low-power DSP processor (VS DSP4), 5 KiB of instruction RAM and 0.5 KiB of RAM for user applications, serial control and input data interface, 4 general-purpose I/O pins, UART, and a headphone output. The board features a microphone, and an audio input/output connector to which an external microphone and headphones can be connected
Electronic board based on the VS1003B chip, an MP3/WMA/MIDI audio decoder and ADPCM encoder. The VS1003 contains a high-performance, low-power DSP processor (VS DSP4), 5 KiB of instruction RAM and 0.5 KiB of RAM for user applications, serial control and data input interface, 4 general-purpose I/O pins, UART, headphone output. The board features a microphone, audio input and output connectors, to which an external microphone and headphones can be connected. Power supply at 3.3 Vdc.
