Network and Telephone Cable Tester with Audio Tone

Tester for network and telephone cables that traces cable runs and checks the continuity of network and telephone wiring. It has a socket for RJ11 and RJ45 leads and a probe for locating and checking cable already installed.

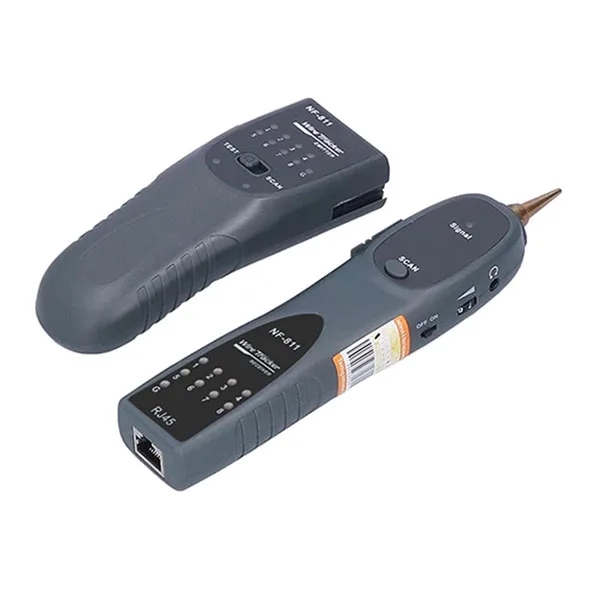

Network and Telephone Cable Tester with Audio Tone - Image 1
Network and Telephone Cable Tester with Audio Tone - Image 3

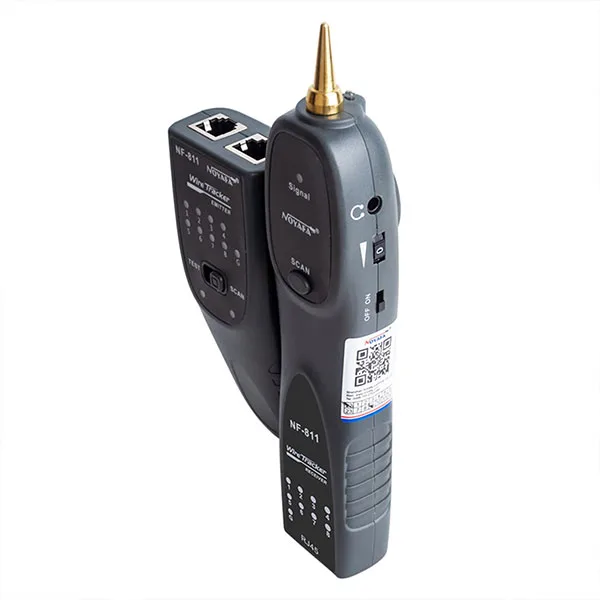

Network and Telephone Cable Tester with Audio Tone - Image 4

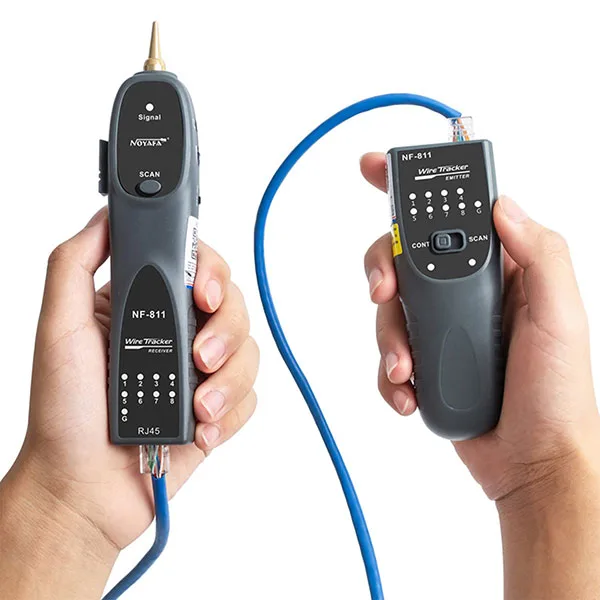

Network and Telephone Cable Tester with Audio Tone - Image 5
Network and Telephone Cable Tester with Audio Tone - Image 6

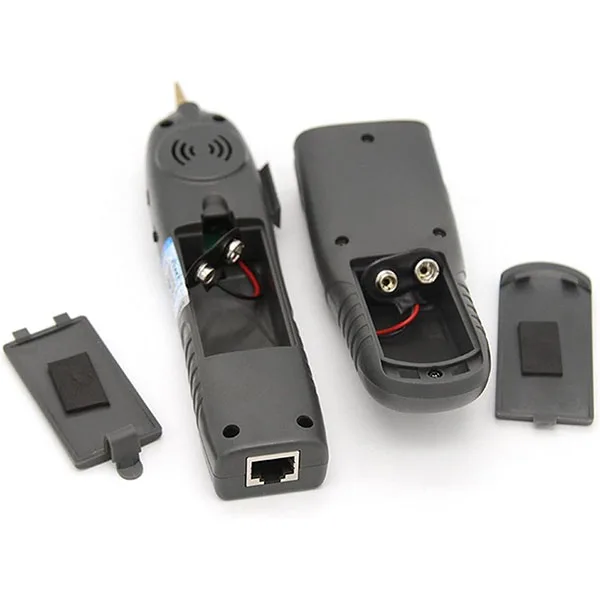

Network and Telephone Cable Tester with Audio Tone - Image 7
Network and Telephone Cable Tester with Audio Tone - Image 8

SKU 8100-FR599EAN 5410329575861Brand: VellemanProduct type: Networking & cable testing

Description

An extremely efficient and versatile instrument for tracing network and telephone cables and testing their continuity. The complete set includes a transmitter and a receiver, which send signals along the cable and pinpoint any breaks or faults.

It is particularly useful for professionals working on communication networks and cabling, because it quickly locates problems or faults in the cable and makes maintenance and repair work far simpler.
Main features
  • Complete with amplified probe and tone generator.
  • Cable tracing (RJ45 and RJ11) and continuity testing (RJ45)
  • Identifies the condition and polarity of the telephone line

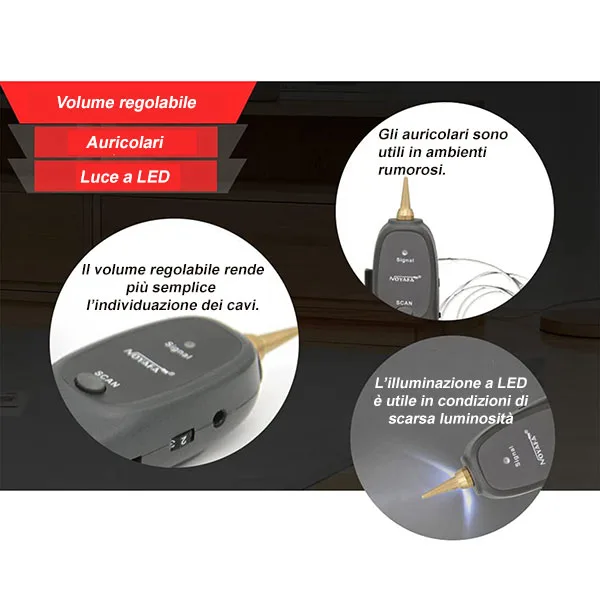

  • Built-in speaker with volume control
  • LED light for working in poorly lit places
Technical specifications
  • TRANSMITTER UNIT
  • RECEIVER UNIT
    • Maximum working current: 80mA
    • Earphone output x1
    • Dimensions: 180x45x30mm
    • Weight: 79g (without battery)

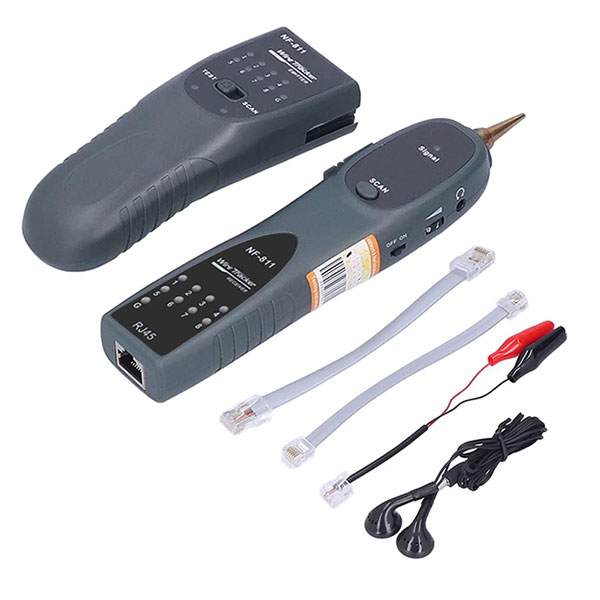

Box contents
  • Transmitter unit x1
  • Receiver unit x1
  • Earphones x1
  • Cable with RJ45 connectors x1
  • Cable with RJ11 connectors x1
  • RJ11 cable with crocodile clips x1

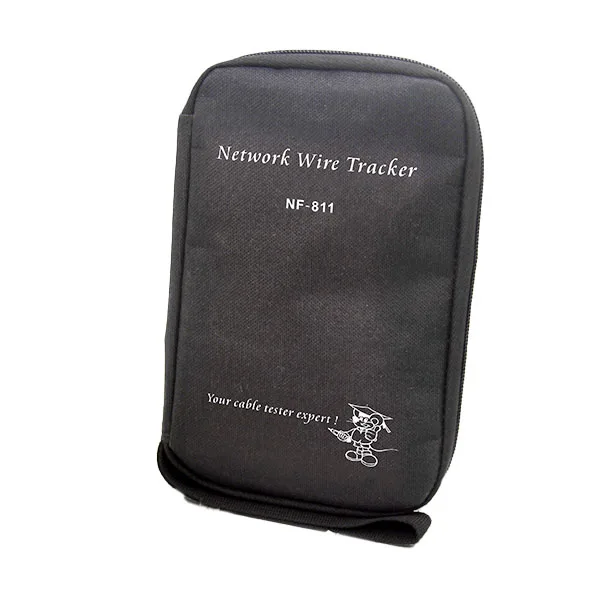

  • Soft case in coated fabric x1
  • User manual
8100-fr599-PACKAGING

Technical details

Audio tone frequency 200Hz
Maximum transmission distance 2km
Maximum working current 30mA
Volume control scale of 1 to 8
Compatible connectors RJ45 / RJ11
Maximum signal voltage 8Vpp
LED display mapping, tone, tracing
Overvoltage protection 60Vdc
Power supply 9Vdc battery (not included)
Dimensions 130x47x35mm
Weight 65g (without battery)
Frequency 200kHz
