Outdoor RGB LED Floodlight IP65 with IR Remote Control – 10 W

Outdoor spotlight with a 1 RGB LED lamp

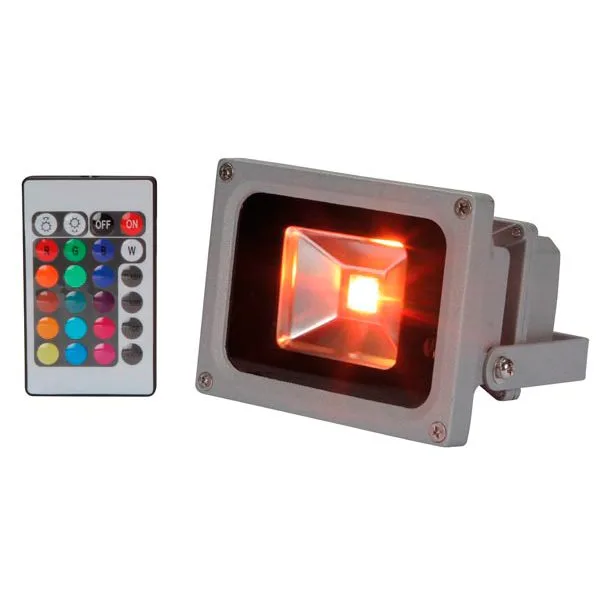

Outdoor RGB LED Floodlight IP65 with IR Remote Control - 10 W - Image 1

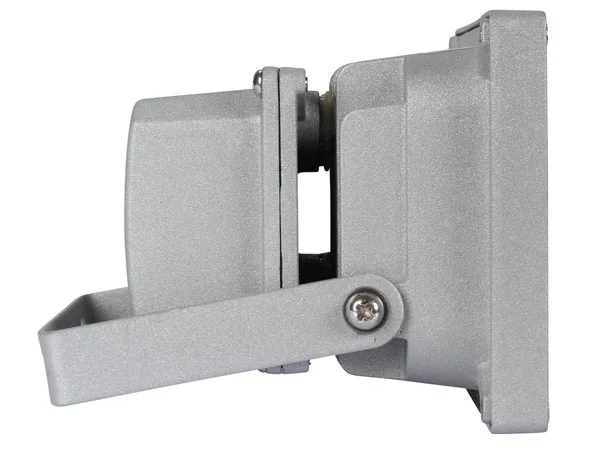

Outdoor RGB LED Floodlight IP65 with IR Remote Control - 10 W - Image 3

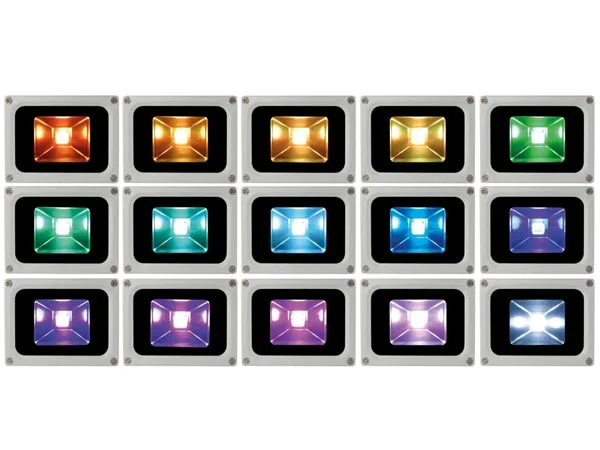

Outdoor RGB LED Floodlight IP65 with IR Remote Control - 10 W - Image 4

SKU 8220-LEDA3001RGBEAN 5410329614485Item type: Assembled

Description

Outdoor spotlight with a 1 RGB LED lamp. Features an IR remote control, a die-cast aluminium body with tempered glass, and fins for maximum heat dissipation. Beam angle: 120°, protection rating IP65, power supply: 230 Vac. Complete with adjustable mounting bracket.
Technical specifications
  • Brightness technical characteristics:
    • beam angle: 100°
  • Dimensions and weight:
    • floodlight: 115 x 89 x 90 mm
    • cable length: 30 cm
    • weight: 590 g
  • Floodlight protection rating: IP65

Technical details

Beam angle 120°, protection rating IP65
power supply 230 Vac
Floodlight colour grey
LED module power 10 W RGB COB LED
total rated power 10 W
supply voltage 230 Vac
LED module rated voltage red: 6.5 V - green: 9.6 V - blue: 9.4 V
power consumption kWh/1000 h 10
cable H05RN-F 3G1.0 - 30 cm
colour RGB
luminous flux 240 lm (white)
brightness intensity (60 %) < 1 s
LED 30,000 h
on/off cycles 15,000
