Pair of passive video baluns over ethernet TVI/CVI/AHD – Video and Power
They carry video and 12 to 24 Vdc power over a single network cable, up to 400 metres at 720p and 250 metres at Full HD.
SKU 8100-CP752EAN 8219671106863Item type: AssembledAccessories
Description
| Pair of passive video baluns. They let you send a composite video signal over ethernet cable for up to 400 metres. As well as the video signal, they can also carry a supply voltage between 12 and 24Vdc to the far end. They are especially suited to use in digital recording installations. |

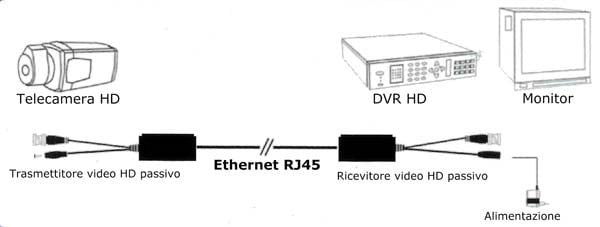

| Wiring diagram |
 |
|
Technical features
|
|
Technical details
| HDCVI transmission distance 720P | 400M / 1080P: 250M; 4MP:200M ; 5MP:200M |
|---|---|
| HDTVI transmission distance 720P/1080P | 250M; 4MP:200M ; 5MP:200M |
| HD transmission distance 720P | 350M / 1080P: 200M; 4MP:200M; 5MP:200M |
| video output connector | BNC - 1 Vpp - 75 ohm |
| Video/power transmission medium | RJ45 ethernet cable |
| Material | ABS |
| Operating temperature | -10°C to +70°C |
| Storage temperature | -30°C to +70°C |
| Humidity | 0 to 95% |
