Parcel Scale with Backlit Display – 10 g/100 kg

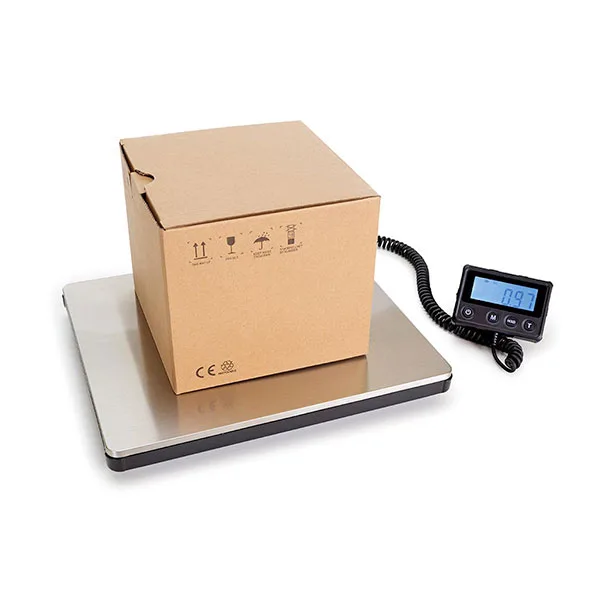

Electronic parcel scale with a maximum load capacity of 100 kg and a measuring accuracy of 10 grams. Stainless steel base 295 x 245 mm. The backlit LCD display gives a clear reading and lets you select the unit of measurement you want.

SKU 8220-VTBAL503EAN 5410329699260Item type: Assembled

Description

Electronic parcel scale designed for a maximum capacity of 100 kg, with a measuring accuracy of 10 grams. It has a high-precision load cell to keep the readings accurate. The weighing platform is made of stainless steel, which makes it sturdy and resistant to corrosive agents.

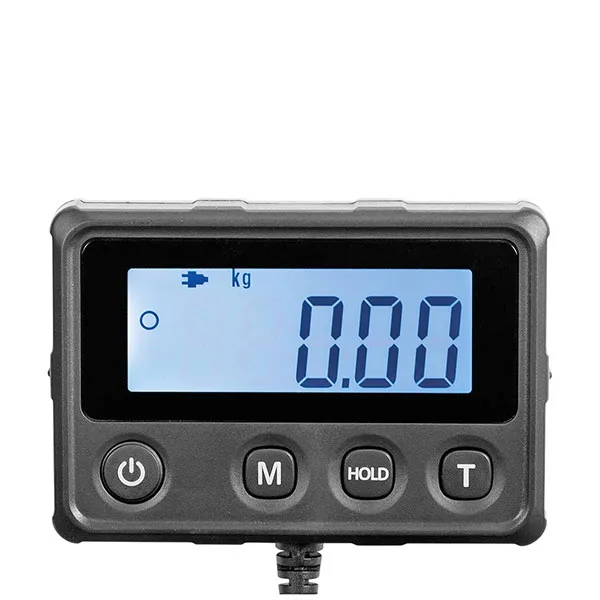

The LCD display, connected to the base by a cable, shows the readings clearly and brightly. The blue backlight makes it easy to read even in poor lighting. From the display you can select the unit of measurement you want between kilogram, gram, pound and ounce, which gives you flexibility when weighing.

The scale has an overload function that warns you when the measured weight goes above the rated maximum capacity (100 kg). It can also be calibrated, which keeps the readings accurate over time.

As for power, the scale runs on 2 AAA batteries of 1.5 V, supplied in the pack, or from a USB cable.

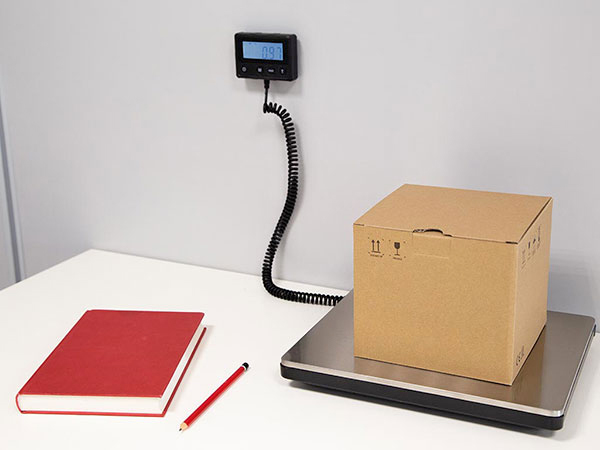

Parcel scale with display - 10g-100kg capacity

What is in the box
  • Parcel scale x1
  • AAA batteries of 1.5 V x2
  • USB cable x1 ( for external power; a power supply with a USB output is required and must be bought separately )
  • User manual x1
  • Screws and wall plugs for fixing the display to the wall

Technical details

Power supply 2 x AAA/R03 batteries of 1.5 V (included)
Material ABS + stainless steel
Capacity 100 kg/220 lb
Accuracy 10 g/0.35 oz
Units of measurement g/kg/oz./lb./lb:oz
Dimensions 298 x 248 x 37 mm
Display 59 x 22 mm
Weight 1.55 kg
