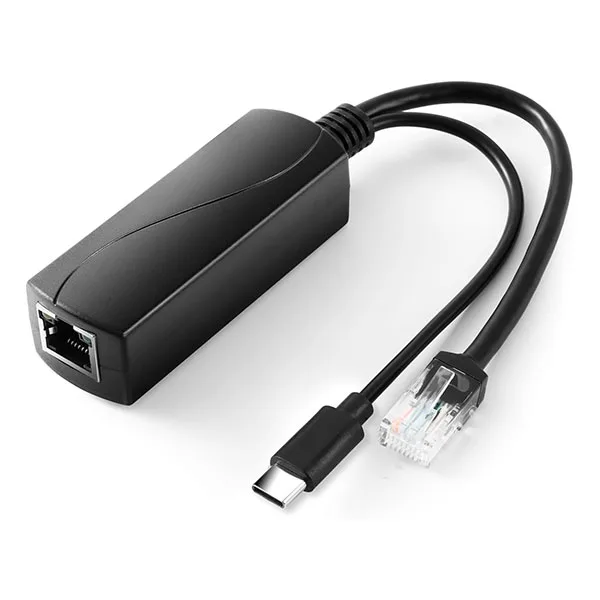

PoE Splitter 48V / 5V 2.4A with USB-C and RJ45 output
PoE splitter able to power USB-C devices that accept 5 V/2.4 A over a single Ethernet cable, keeping the RJ45 data connection separate. Compact and plug & play, ideal for Raspberry Pi, access points and IP cameras.
SKU 1606-POESPLITUSBCEAN 8219671079402Item type: AssembledAccessories, Connectors, RJ connectors
Description
| able to convert the 48 V PoE supply into 5 V DC at up to 2.4 A through a USB-C port, while keeping the Ethernet data connection separate. It is designed to power USB-C devices that accept 5 V/2.4 A, such as Raspberry Pi boards, microcomputers, access points, IP cameras and other IoT devices.
The splitter has one RJ45 input that takes data and power from the Ethernet cable and two separate outputs: one USB-C port for the power and one RJ45 port that carries data only. The compact and plug & play design makes installation simple and cuts down the number of cables needed to bring power and network to the device. |
| Technical specifications |
|

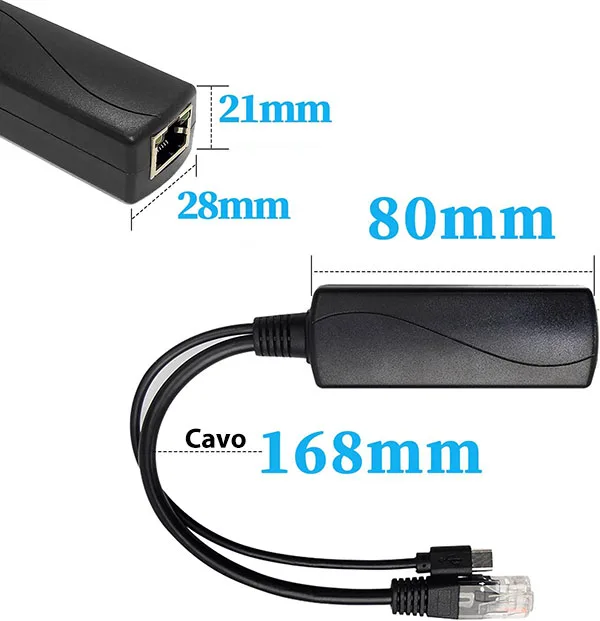

| Dimensions |
 |
Technical details
| Input | RJ45 PoE 48 V, compliant with the IEEE 802.3af/at standard |
|---|---|
| Power output | USB-C 5 V DC, 2.4 A |
| Data output | RJ45 (data only, no power) |
| Conversion efficiency | approx. 90% |
| Maximum power | 12 W |
| Operating temperature | 0–50 °C |
