Power Relay 24 Vdc – 30A

This 24V 30A power relay with changeover contact is ideal for automotive and electronic applications. Designed for PCB mounting, it offers high dielectric strength, stable operation and a wide operating temperature range.

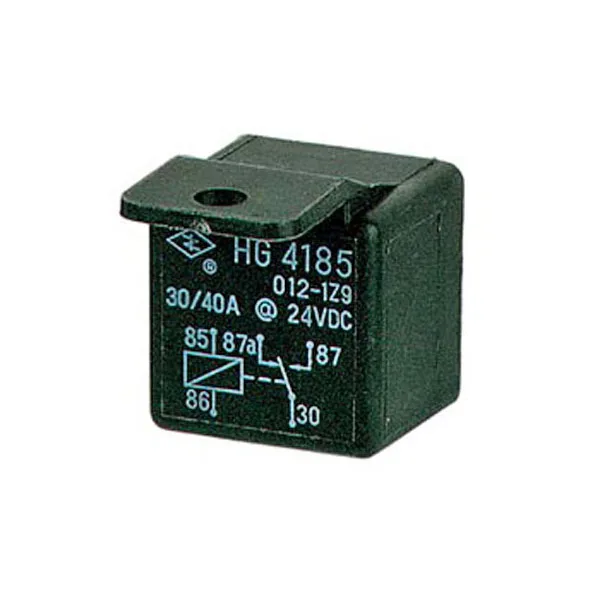

Power Relay 24 Vdc - 30A - Image 1
Power Relay 24 Vdc - 30A - Image 3

SKU 5230-RL24-30EAN 8219671035866Item type: Assembled

Description

Reliable and compact, this 24V 30A power relay is designed for automotive and electronic applications that demand high performance. With a changeover contact and a coil resistance of 100 ohm, it ensures stable operation with a pick-up current of 140 mA.

Built in rugged ABS, it withstands a dielectric strength of up to 750V between contacts and coil, ensuring high electrical insulation. The relay is optimised for PCB mounting and can handle currents up to 30A in low-voltage circuits.

Thanks to its wide operating temperature range of -40°C to 85°C, it is suited to extreme environmental conditions. Perfect for automotive electrical systems, control systems and industrial applications.
Technical specifications
  • Ideal for electronic projects, automotive applications and control circuits.

Technical details

Coil voltage 24V DC
Maximum switching current 30A
Mounting PCB
Contact type changeover
Material ABS
Operating temperature -40°C ~ 85°C
