Pure Sine Wave Inverter 600W – 12V to 220VAC + USB

12 VDC to 220 VAC inverter with a pure sine wave output and a maximum power of 600 Watt

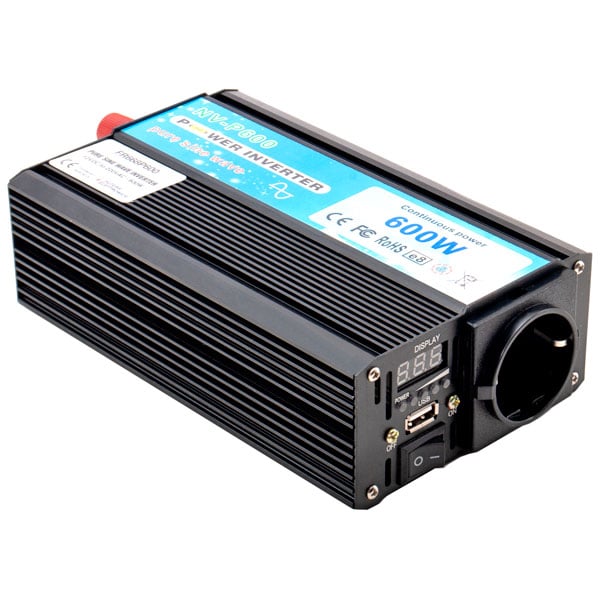

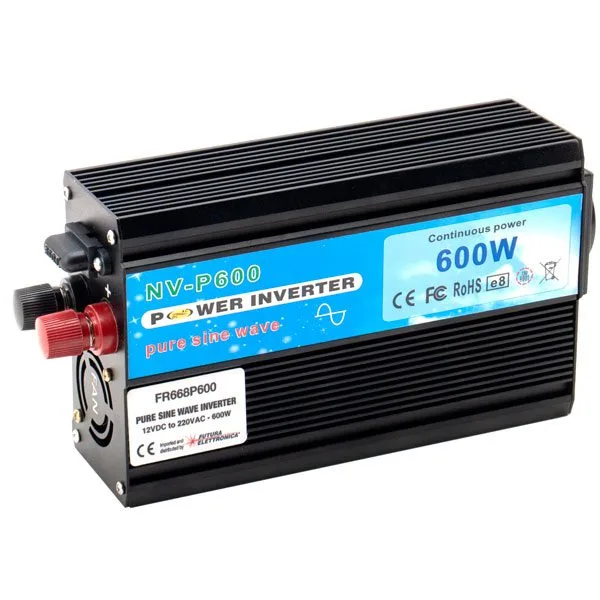

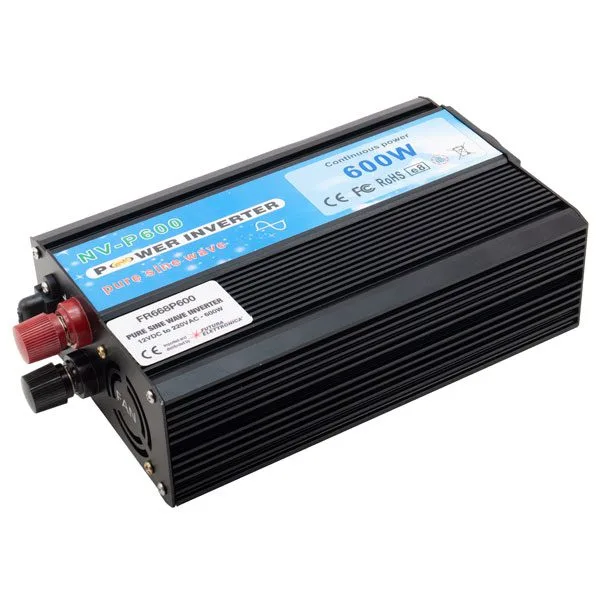

Pure Sine Wave Inverter 600W - 12V to 220VAC + USB - Image 1
Pure Sine Wave Inverter 600W - 12V to 220VAC + USB - Image 3
Pure Sine Wave Inverter 600W - 12V to 220VAC + USB - Image 4
Pure Sine Wave Inverter 600W - 12V to 220VAC + USB - Image 5
Pure Sine Wave Inverter 600W - 12V to 220VAC + USB - Image 6

SKU 8100-FR668P600EAN 8219671083652Output voltage: 12 Vdc

Description

12 VDC to 220 VAC inverter with a pure sine wave output and a maximum power of 600 Watt. The inverter is protected against overload, input overvoltage and short circuit, and warns when the battery is flat. It has a USB output (5 V – 500 mA), a display, 5 status LEDs and a Schuko socket, and can be used to run TVs, VCRs, PCs, hi-fi systems, fridges and the like.

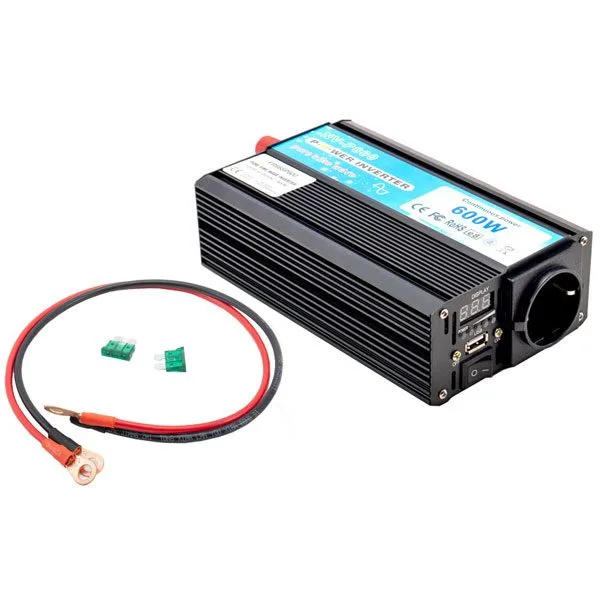

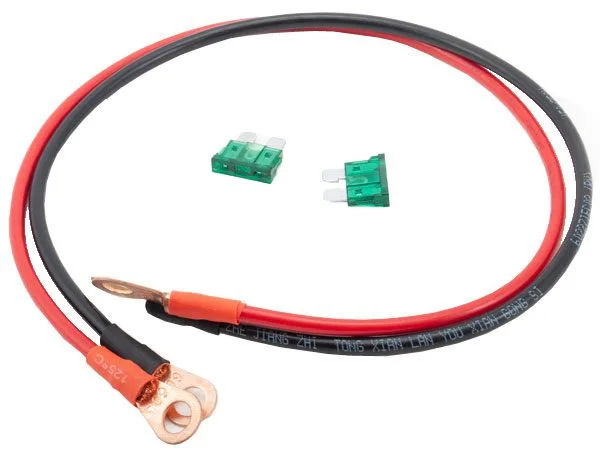

The package also includes the battery leads and two spare 30 A fuses.
Technical specifications
  • Inverter alarm and shutdown temperature: >50°C
  • Spare fuses: Yes, two 30A
  • Dimensions (mm):
    – inverter: 220x115x55
    – packaging: 270x155x95
  • Weight:
    – inverter: 980 grams
    – packaging: 1,211 grams

Technical details

Rated output power 600 watts continuous - 1200 watts surge
Input voltage 12 VDC nominal
Output voltage 220-240 VAC – 50 Hz
Output waveform pure sine wave
Efficiency 90%
No-load current draw < 0.2 A
Low battery alarm 10.5-11.5 Vdc
Low battery automatic shutdown 9.5-10.5 Vdc
Cooling fan Yes
Output socket SCHUKO
USB output Yes
Display Yes
Status LEDs Yes, 5
Connecting leads supplied yes
