QX90 FPV Micro Quadcopter
SKU 2253-QX90MICROFPVEAN 8219671080996Item type: AssembledModelling
Description

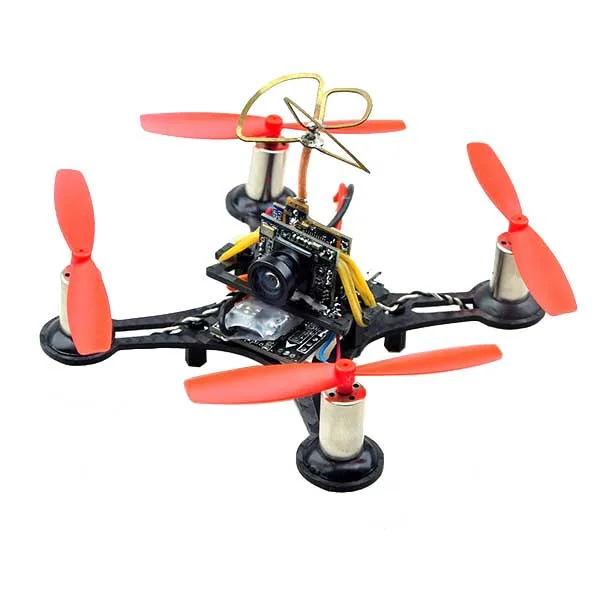

Micro quadcopter with F3_EVO_BRUSH flight controller and color camera with 5.8 GHz video transmission. The QX90 is controlled via an RC radio control for model aircraft, and the images captured by the camera, which allow you to see in real time where the quadcopter is going, can be viewed via a 5.8 GHz video receiver paired with a monitor or via the dedicated FPV goggles.

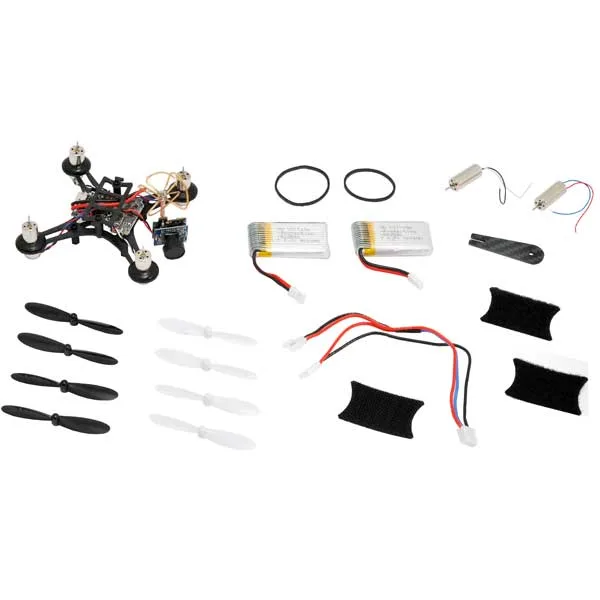

The package includes the QX90 FPV micro quadcopter, the control electronics with integrated 2.4 GHz 8-channel receiver and F3_EVO_Brush flight controller, the color camera with 5.8 GHz video transmitter, four spare propellers, two spare motors, a rechargeable 3.7 V 600 mAh battery, and the charger.
Note: the transmitter to control the quadcopter and the video receiver are not included (see related products).
Technical details
| Flight controller | F3_EVO_BRUSH |
|---|---|
| Firmware version | Cleanflight 1.13.0 |
| Motors | 8520 Brush Motor |
| Propeller size | 55 mm |
| Integrated receiver | 2.4 GHz frequency, compatible with Flysky i6 |
| Camera | 1/4" color CMOS with 520 TV lines and 120° viewing angle |
| Video transmitter | 5.8 GHz - 32 channels 28 mW (integrated with the camera) |
| Battery | Lipo 3.7 V 600 mAh |
| Flight time | approximately 5-6 minutes |
| Quadcopter dimensions (mm) | 118x118x70 |
| Weight | 39 grams (without battery) |
