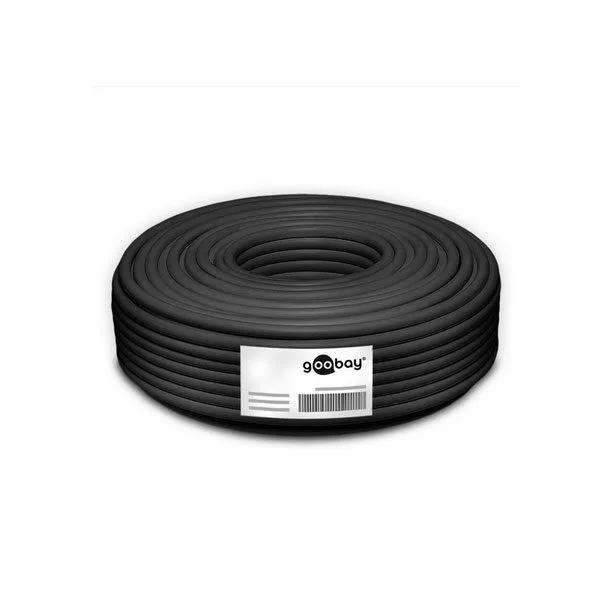

RG58 Coaxial Cable – 50 Ohm – 100 metre reel
RG58 coaxial cable, 5mm outside diameter, 50 ohm, on a 100 metre reel, double screened and 0.6mm inner conductor. Compliant with fire protection class Eca.
SKU 8228-WT100RG58EAN 4040849500930Item type: AssembledCable reels
Description
| Black RG58 coaxial cable on a 100 metre reel. Suitable for indoor use and for outdoor use inside trunking. It is double screened for proper signal protection over long runs, and it accepts all the common connectors (BNC/N/UHF/SMA). It meets the CPR (Construction Products Regulation) and is therefore compliant with fire protection class Eca. Outside diameter: 5 mm, inner conductor diameter 0.6 mm. Inner conductor material: CCS (copper-clad steel), shield 1: foil (aluminium), shield 2: braid (aluminium) 32x, insulation: PVC, impedance: 50 ohm. It complies with standard EN 50575:2014+A1:2016. |
| Technical specifications |
|
| Documentation |
Technical details
| Cable type | RG 58 |
|---|---|
| Inner conductor material | CCS (copper-clad steel) |
| Number of shields | 2x |
| Shield 1 | foil (aluminium) |
| Shield 2 | braid (aluminium) 32x |
| Cable jacket diameter (over) | 5 mm |
| Inner conductor diameter | 0.6 mm |
| Impedance | 50 ohm |
| Cable length | 100 m |
| Outer insulation material | PVC |
| Fire class (CPR) | Eca |
| Colour | black |
| Markings | ECA_CPR, CE |
| European standard applied | EN 50575:2014+A1:2016 |
