RGB LED 1 Watt

6-pin RGB LED with 1 watt of power
RGB LED 1 Watt - Image 1

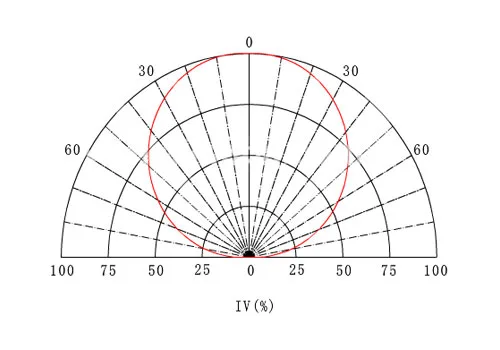

RGB LED 1 Watt - Image 3
RGB LED 1 Watt - Image 4

SKU 2846-LEDRGB1WEAN 8219671066556Item type: Assembled

Description

RGB LED with 6 pins and 1 watt of power. Luminous flux (lumens): 40-50 (red), 60-70 (green), 20-30 (blue); wavelength (nm): 620-625 (red), 515-525 (green), 460-470 (blue); beam angle: 140°; supply voltage: 2 to 2.4 Vdc (red), 3.2 to 3.6 Vdc (green), 3.2 to 3.6 Vdc (blue); operating temperature: -25°C to +120°C; storage temperature: -40°C to +80°C; soldering temperature: 330°C max 5 seconds; average life: 50,000 hours.
