RJ45 plug, CAT 5 UTP unshielded
Gold-plated contacts at 3 microns and snap-in strain relief, for solid or stranded cables from AWG 24 to 26; rated up to 100 MHz.
SKU 8228-RJ45CAT5EAN 8219671103770Item type: AssembledAccessories, RJ connectors
Description
| RJ45 plug connector, 8 contacts, cat.5e, plastic. The snap-in strain relief and gold-plated contacts (3 µm) ensure good conductivity over time. It is compatible with solid and stranded conductors (AWG 24-26) and offers bandwidth up to 100 MHz, ensuring optimal performance for home or business networks. |
Technical details
| Connector type | RJ45 plug (8P8C) |
|---|---|
| Category | CAT 5e |
| Material | plastic |
| Shielding class | UTP (unshielded) |
| Contacts | Gold-plated, 3 µm thickness |

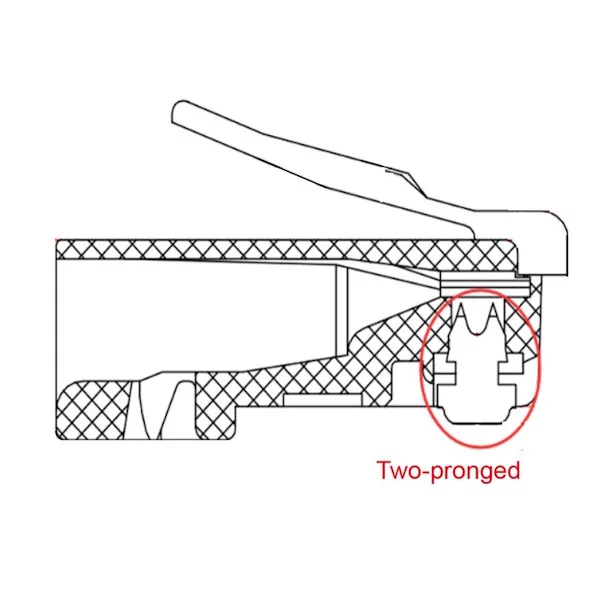

| Terminals | 4+4 pins, with 2-point pins |
| Compatibility | Round cables, solid or stranded conductors, AWG 24-26 |
| Bandwidth | Up to 100 MHz |
