RJ45 Plug, CAT 6 UTP unshielded
Gold contacts plated to 15 microns with three-prong pins, for solid or stranded cable from AWG 23 to 26; rated up to 250 MHz.
SKU 8228-RJ45CAT6EAN 8219671103770Item type: AssembledAccessories, RJ connectors
Description
| RJ45 plug connector, 8 contacts, cat.6, plastic body. The snap-in terminals and the 15 µm gold-plated contacts keep conductivity good over time. It works with solid and stranded conductors (AWG 23-26) and offers bandwidth up to 250 MHz, giving the best performance on home or business networks. |
Technical details
| Connector type | RJ45 plug (8P8C) |
|---|---|
| Category | CAT 6 |
| Material | plastic |
| Shielding class | UTP (unshielded) |
| Contacts | gold plated, 15 µm thick |

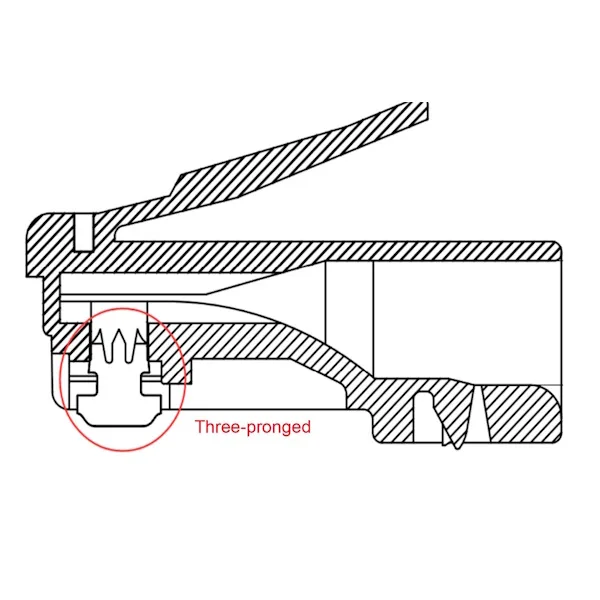

| Terminals | 4+4 pins, with 3-prong piercing tips |
| Compatibility | round cables, solid or stranded conductors, AWG 23-26 |
| Bandwidth | up to 250 MHz |
