Set of 35 resistive trimmers

Set of 35 0.1 watt resistive trimmers with the following values: 5 of 470 ohm, 5 of 1 kohm, 5 of 10 kohm, 5 of 47 kohm, 5 of 100 kohm, 5 of 470 kohm, 5 of 1 Megohm

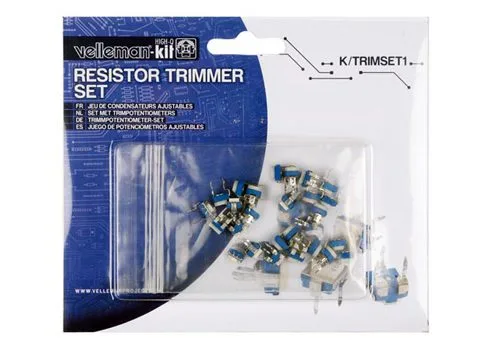

Set of 35 resistive trimmers - Image 1

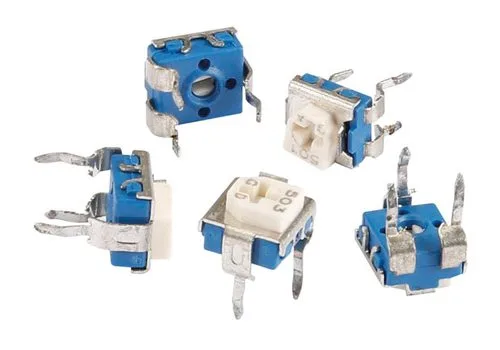

Set of 35 resistive trimmers - Image 3
Set of 35 resistive trimmers - Image 4

SKU 8220-K/TRIMSET1EAN 5410329341817Item type: Assembled,

Description

Set of 35 0.1 watt resistive trimmers with the following values: 5 of 470 ohm, 5 of 1 kohm, 5 of 10 kohm, 5 of 47 kohm, 5 of 100 kohm, 5 of 470 kohm, 5 of 1 Megohm. Operating temperature: from -10°C to +70°C, resistance tolerance: about 30%, operating voltage: max. 50 volts, rotation angle: 200°, soldering temperature: 260°C.

Technical details

Operating temperature from -10°C to +70°C
resistance tolerance about 30%
operating voltage max. 50 volts
rotation angle 200°
soldering temperature 260°C
