Set of 370 Threaded Inserts for 3D Printing

Pack of 370 knurled threaded inserts suitable for plastic materials such as PLA, PETG, ABS, etc.
Set of 370 Threaded Inserts for 3D Printing - Image 1
Set of 370 Threaded Inserts for 3D Printing - Image 3
Set of 370 Threaded Inserts for 3D Printing - Image 4
Set of 370 Threaded Inserts for 3D Printing - Image 5

SKU 2846-CH46222EAN 8219671118859Item type: Small parts

Description

Pack of 370 knurled threaded inserts suitable for plastic materials such as PLA, PETG, ABS, etc. Made of brass, they are normally used in injection molding, but can also be used in 3D-printed parts. To insert them into 3D-printed holes, simply heat them with a soldering iron and press them into place.

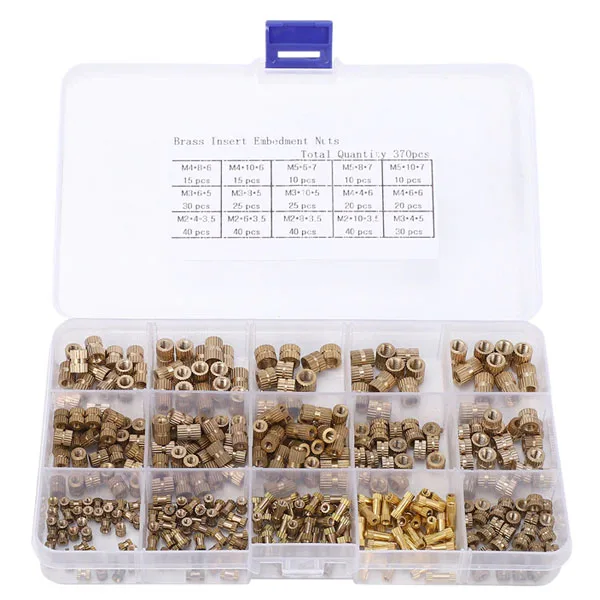

The pack includes:

  • 40 pcs M2x4x3.5 mm (2 mm inner diameter, 3.5 mm outer diameter, 4 mm height)
  • 40 pcs M2x6x3.5 mm (2 mm inner diameter, 3.5 mm outer diameter, 6 mm height)
  • 40 pcs M2x8x3.5 mm (2 mm inner diameter, 3.5 mm outer diameter, 8 mm height)
  • 40 pcs M2x10x3.5 mm (2 mm inner diameter, 3.5 mm outer diameter, 10 mm height)
  • 30 pcs M3x4x5 mm (3 mm inner diameter, 5 mm outer diameter, 4 mm height)
  • 30 pcs M3x6x5 mm (3 mm inner diameter, 5 mm outer diameter, 6 mm height)
  • 25 pcs M3x8x5 mm (3 mm inner diameter, 5 mm outer diameter, 8 mm height)
  • 25 pcs M3x10x5 mm (3 mm inner diameter, 5 mm outer diameter, 10 mm height)
  • 20 pcs M4x4x6 mm (4 mm inner diameter, 6 mm outer diameter, 4 mm height)
  • 20 pcs M4x6x6 mm (4 mm inner diameter, 6 mm outer diameter, 6 mm height)
  • 15 pcs M4x8x6 mm (4 mm inner diameter, 6 mm outer diameter, 8 mm height)
  • 15 pcs M4x10x6 mm (4 mm inner diameter, 6 mm outer diameter, 10 mm height)
  • 10 pcs M5x6x7 mm (5 mm inner diameter, 7 mm outer diameter, 6 mm height)
  • 10 pcs M5x8x7 mm (5 mm inner diameter, 7 mm outer diameter, 8 mm height)
  • 10 pcs M5x10x7 mm (5 mm inner diameter, 7 mm outer diameter, 10 mm height)

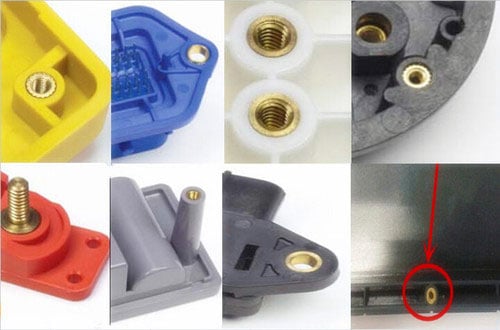

Usage examples
