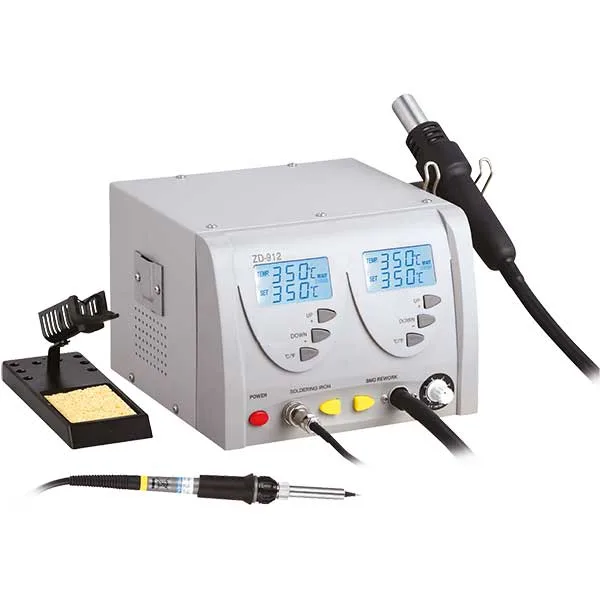

Soldering and Desoldering Station for SMD Components
Multifunction soldering and hot air station for all SMD soldering and rework jobs.
SKU 8240-TP282EAN 5410329659172Product type: Soldering/desoldering stationSoldering
Description

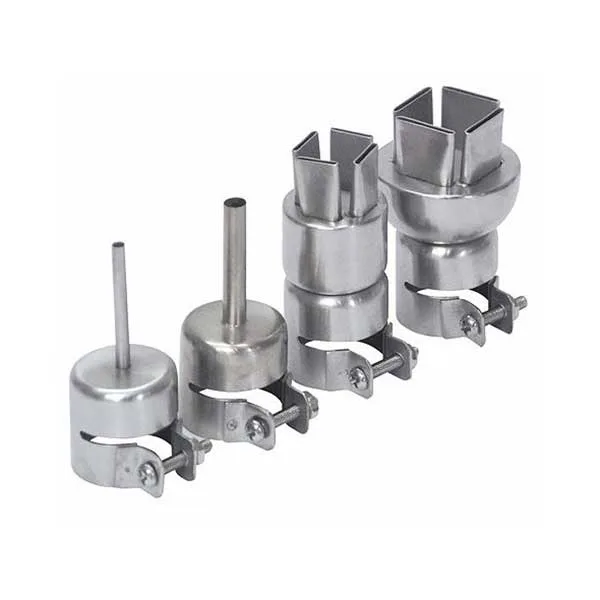

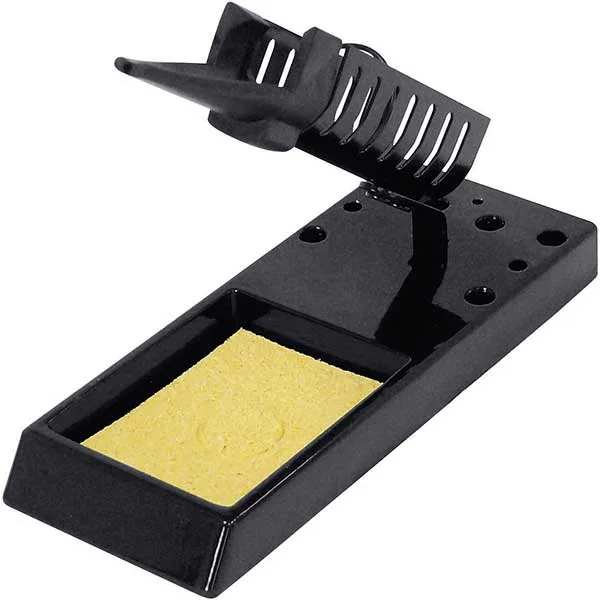

| High-performance soldering and desoldering station for SMD components. It has a twin backlit LCD display that shows the soldering iron and the desoldering temperatures at the same time. It has a ceramic heating element and automatic cooling. Air flow and temperature are both adjustable. It is supplied complete with 4 types of interchangeable air nozzles and an iron holder. Automatic stand-by function; it can also be used as a hot air gun. |
| Features |
|
| Technical specifications |
|
Technical details
| Supply | 110-130V AC, 220-240V AC |
|---|---|
| Power draw | 60W + 320W |
| Fuse | 3.15A/250V |
| Air pump | diaphragm type |
| Working voltage | 24V AC |
| Power | 60W (heating power 130W) |
| Temperature range | 160°C - 480°C |
| Air flow capacity | 24L/min (max) |
| Dimensions | (L x W x H) 350 x 220 x 280 mm |
| Weight | 6 kg |
| User manual | in English |
